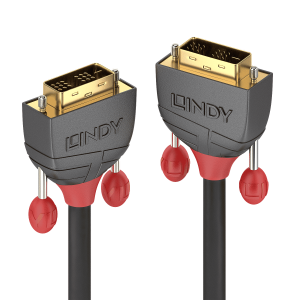

Lindy Cavo DVI-D SLD Single Link Anthra Line, 10m

DVI-D Single Link Male to Male

SKU: 42350

Out of Stock

€ 73,87 € 60,55 + VAT

Let's stay in touchDiscover our opening hours

Lindy 10m DVI-D SLD Single Link Cable - Anthra Line

DVI-D Single Link Male to Male

Professional choice DVI-D Single Link cable for commercial and high performance AV and IT installations
Supports DVI resolutions up to 1920x1200 @60Hz and HDTV resolutions up to 1080p
Robust PVC housing, 24K gold plated connectors and contacts
Tripled shielded cable, corrosion resistant tinned copper 24AWG conductors
10 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line DVI-D Single Link cables are the professional choice for high performance connections in commercial AV and IT installations. Anthra Line DVI-D Single Link are premium cables that feature triple shielded construction with 24AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability. The tough PVC housing incorporates an integrated finger grip for easy installation. Large thumb screws allow the connector to be tightened into place without the need for a screwdriver and a flexible strain relief prolongs cable life. Anthra Line DVI-D Single Link cables support resolutions up to 1920x1200@60Hz including HDTV resolutions up to 1080p. Anthra Line DVI-D Single Link cables are available in lengths of 10m to 25m.

Specifications

Connectors

Connector A: DVI-D Male (Single Link)
Connector B: DVI-D Male (Single Link)
Housing Material: PVC
Connector Plating: 24K Gold 1μm
Pin Construction: Brass
Pin Plating: 24K Gold 1μm
Dimensions (approx.) WxDxH: 39.5x16.5x44.5mm (1.56x0.65x1.75in)

Cable Construction

Length: 10m (32.81ft)
Standard: DVI-D Single Link
Colour: Black
Type: Round
Jacket Diameter: 9.5mm (0.37in)
Jacket Material: PVC
Conductor Material: Bare Copper
Conductor Gauge: 24AWG
Shielding: Aluminium Magnesium Braid 75%

Specifications

Supported Bandwidth: 4.95 Gbps
Maximum Resolution: 1920x1200@60Hz
Nominal Attenuation: 1 - 825Mhz < 8db
Minimum Bend Radius: 95mm (3.74in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

Length

10 m

Signal type

DVI-D
