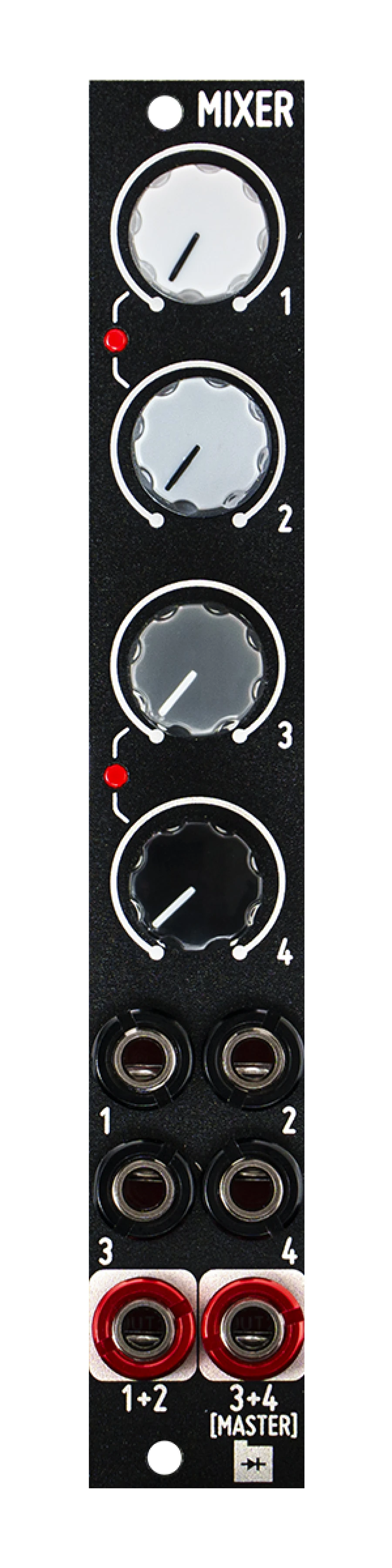

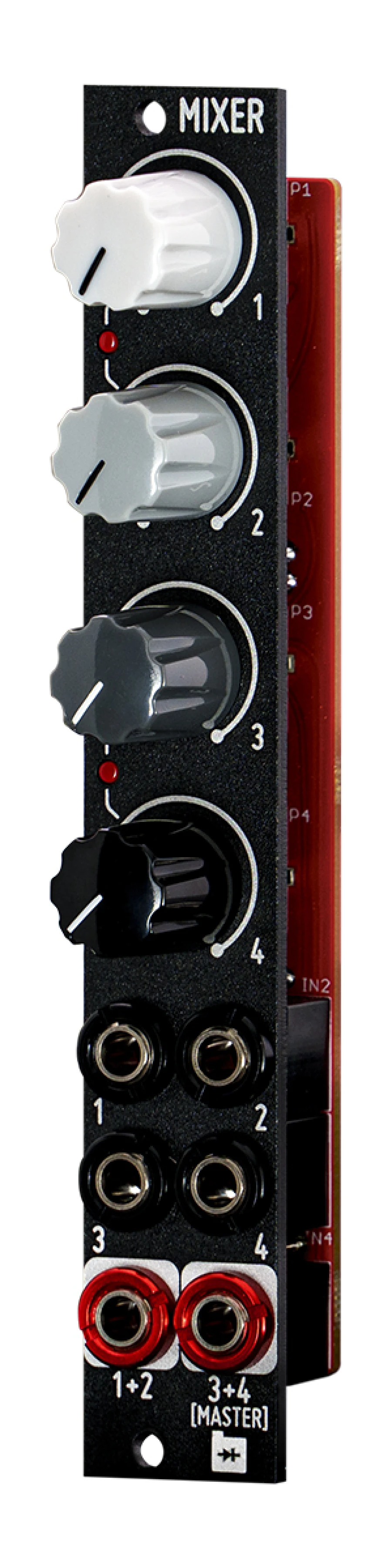

Befaco Mixer

Utilitarian audio and CV mixer

Befaco
SKU: 117530

113,00 € 90,00 + VAT

  • Available to order
  • Clock icon Normally delivered in 8-10 working days

Utilitarian audio and CV mixer

  • Dual Sumimg topology.
  • DC Coupled.
  • lLED Signal Indicators.

Combine up to four audio and or CV sources into one output, with independent manual level control.
It can be used as a four-channel mixer or as two separate two-channel mixers, depending on the connection.

If a cable is connected to the Master output but not to the 1+2 output, all channels will be summed at the Master output. If both the Master and 1+2 outputs are connected, the Master will output the mix of channels 3 and 4, while the 1+2 output will provide the mix of channels 1 and 2.

Each pair of channels has an LED indicator that shows the presence of a signal.

SPECIFICATIONS

  • Current needs: +12V: 35mA, -12: 25mA, 5v:0
  • Width: 4 HP
  • Depth: Assembled version 25 mm
  • Designed, kits prepared and  modules assembled in Barcelona.

Depth

25 mm

Width

4 hp
