Befaco 1U STMix

Four channel Stereo Mixer

Befaco
SKU: 117541
  • Coming soon

110,70 € 90,00 + VAT

  • Clock icon Contact us to check delivery time
  • Four channels stereo inputs with volume control.
  • AC Coupled inputs to improve audio performance.
  • Output clipping LED indicators.
  • Connector at the back to interface with the Hexmix module.
  • 1U Intellijel format.
  • Pulp Logic Panel format available on demand.

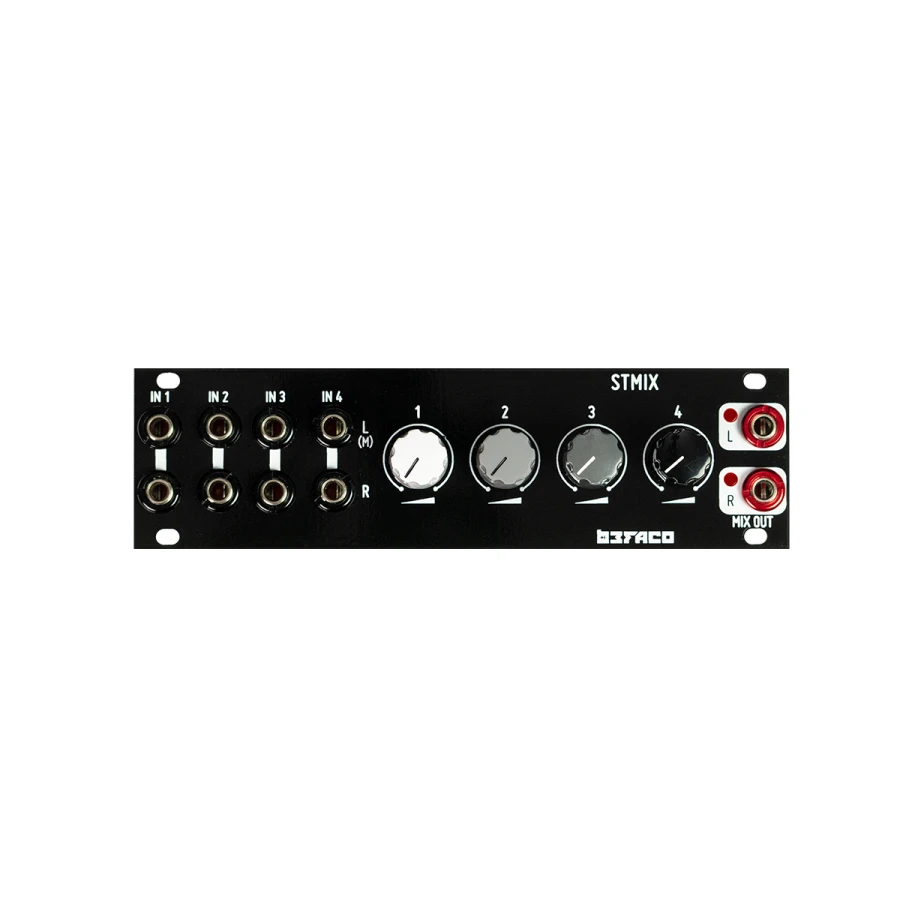

Befaco 1U STMix

Four channel Stereo Mixer

STMix is a four-channel stereo mixer in 28hp and 1U format. It can work independently or as an expansion of our Hexmix module via the six-pin connector located in the back. The module is designed under the Intellijel 1U format.

SPECIFICATIONS

  • Current needs: +12V: 30mA, -12V: 30mA
  • Width: 28 HP
  • Depth: 20mm (including power connector)
  • Aluminiun, heat-treated front panel
  • Designed, kits prepared and completed modules assembled in Barcelona

Depth

20 mm

Width

28 hp
