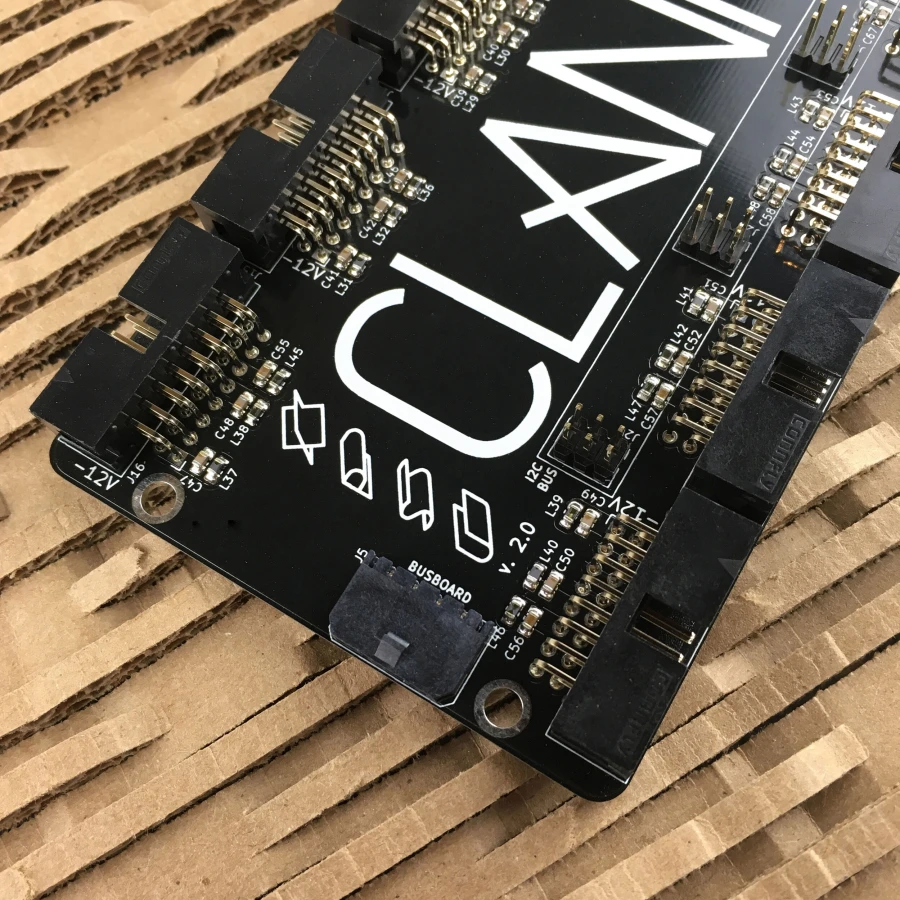

XPSU passive busboard
€ 64,90 € 55,00 + VAT
Contact us to check delivery time
Passive 16IDC I2C BUS. Comes with a microfit connector
All Clank cases come with our XPSU, a modern DC/DC switching unit composed of a powered Coreboard and an unpowered Busboard.
The power rails are balanced according to the standard Eurorack module’s power consumption ratio.
Every power rail has a dedicated copper plane, which ensures low noise/low impedance paths and better heat loss.
In addition to the copper layers, every connector is individually filtered with three independent LC filters. This has been done to avoid parasite noises and reduce crosstalks/bleeds between modules.
In total Clank used 96 components for the filtering job, which proved worth it.
Clank believes in the power of i2C and that it will be used more in the future.
Clank wanted to encourage this trend by adding a dedicated active i2c busboard. Seven 2x03/2.54” pin connectors with pullup resistors are used for that purpose.
