4MS RCD Breakout

The breakout module for the Rotating Clock Divider

SKU: 18142

Coming soon

€ 93,18 € 78,97 + VAT

Add

Let's stay in touchDiscover our opening hours

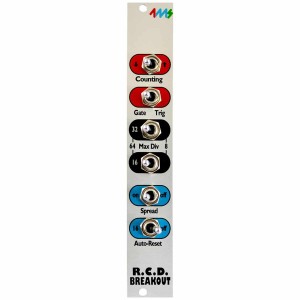

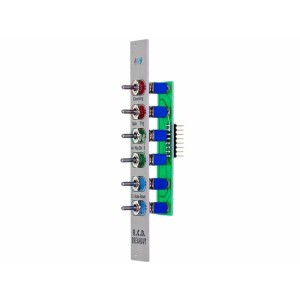

The breakout module for the Rotating Clock Divider has to be connected to the internal jumpers of the RCD and allows for switching the division factors, counting direction and automatic reset. Detail: Counting determines how the RCD counts after having received a reset. Either all outputs will turn “high” after a reset and “low” after the first clock or vice versa (downbeat or upbeat). Gate / Trig: In GATE position gate signals with half the lenghth of the divisor will be output (e.g. the gate will be 2 clocks long at the 4 output and 1.5 clocks at the 3 output). In TRIGGER position short impulses of 40ms length will be provided at the eight outputs Max Div sets the highest possible divider factor, either 8, 16, 32 or 64. Auto Reset determines if the RCD will auto-reset itself and if so, after how many clocks (16, 24 or 32 clocks).

Depth

35 mm

Width

4 hp
