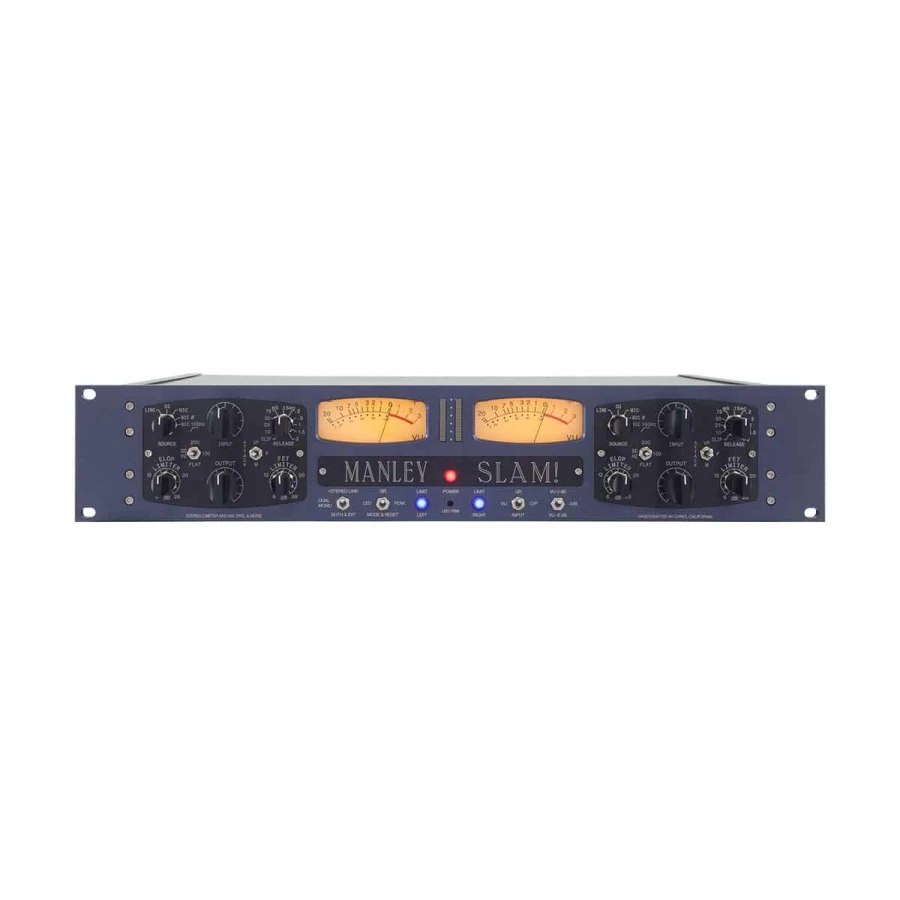

Manley SLAM!
Preamplificatore microfonico con Brick-wall Limiter
Doppio preamplificatore microfonico valvolare, dotato di limiter a controllo ottico, ideale per registrare voci e strumenti acustici e limiter fet per interventi più “drastici”. Con scheda di conversione A/D-D/A 24 bit/192 kHz opzionale.
Specifiche tecniche
- Input Tubes: 2 x 12AT7A NOS GE specially selected by Manley Labs for lo-noise and stable bias
- Output Tubes: 2 x 6414W NOS USA dual triodes
- I/O: MANLEY transformer coupled Balanced Inputs and Outputs
- Gain: 20dB max Limiter Gain
- Input Impedance:
- FET Limiter:Attack: approx. 100μS; Release: 10mS to 2Sec; Ratio: better than 20:1
- ELOP Limiter:Attack: approx. 10mS for 6dB GR; Release: 2.5 Sec; Ratio: 10:1
- Frequency Response: 5Hz to 60KHz
- Maximum Output: +32dBm, +30dBm (into 1KΩ load)
- THD+N: <.05% @ 1KHz
- Dynamic Range:115dB typical
- Output Impedance: 200Ω
- Power Consumption Slam! Analog:
- 0.480 Amps (480 milliamps = 480mA) @ 120V = 57.6 Watts
- 0.240 Amps (240 milliamps = 240mA) @ 240V = 57.6 Watts
- Outboard Power Supply:factory set for 100V, 120V or 220-240VAC operation for original destination country’s mains voltage.
- Operating Mains Voltage:changeable with power transformer re-wiring via switch and fuse value change.
- Mains Voltage Frequency:50~ 60Hz
- Size: 19” X 12” X 3.5” (occupies 2u)
- Shipping Weight: 25 lbs.
