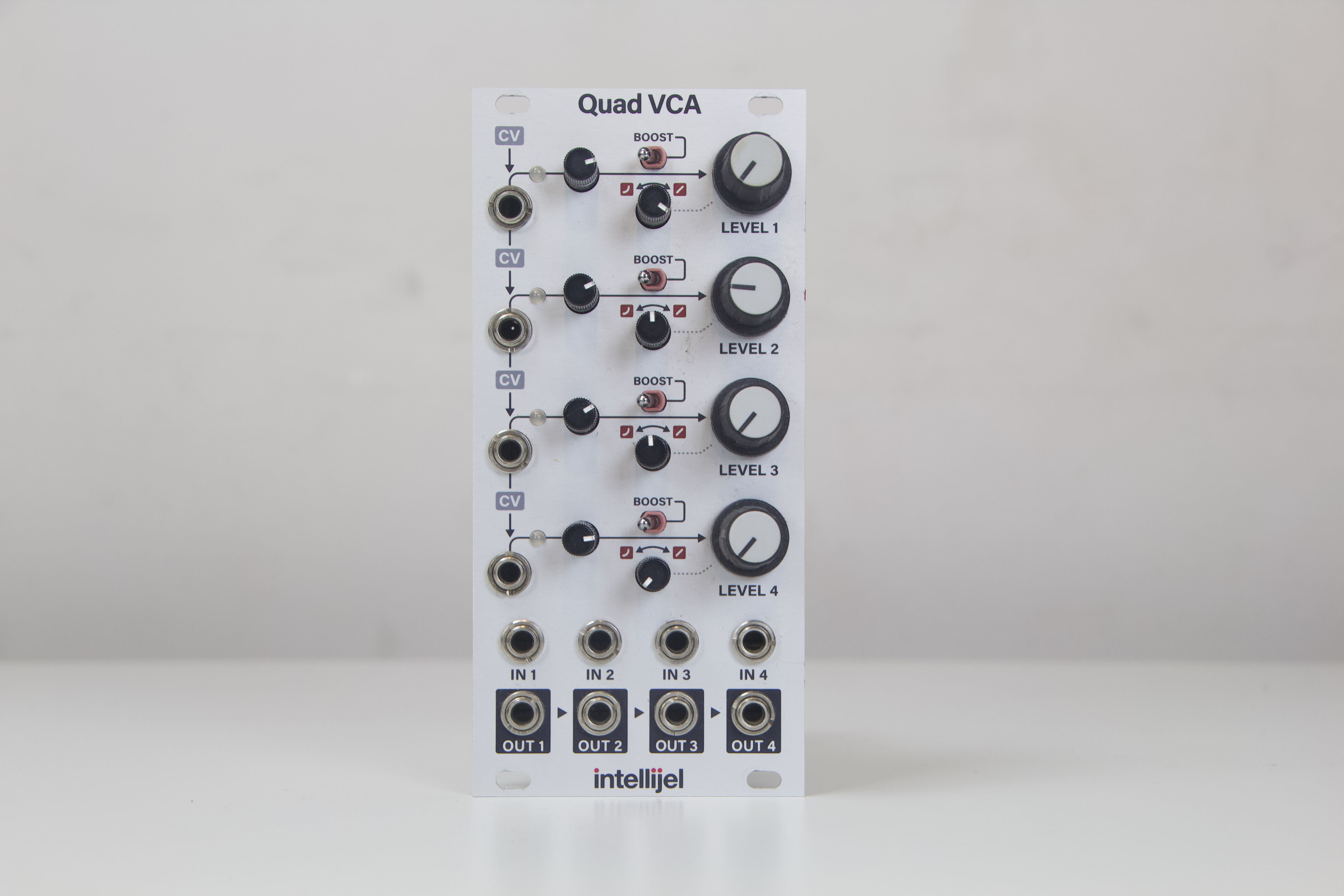

Intellijel Quad VCA

Quad Voltage Controlled Amplifier (VCA) and Cascaded Mixer

• Manual LEVEL control per VCA which is convenient when using the module as a mixer or for biasing when CV modulating the VCA with a bipolar LFO.
• Dedicated CV attenuators with dual color LEDs for monitoring bipolar CV signals.
• Continuously adjustable response from linear to exponential per VCA.
• Each CV input is normalled to the adjacent one for cascaded control.
• Each output is normalled to the mix input of the adjacent one which allows you to use adjacent sets as submixes or the fourth output can be used as a master mix output when none of the other outputs are patched.
• Each VCA has a boost switch that increases the output level by approximately +6dB (double).
