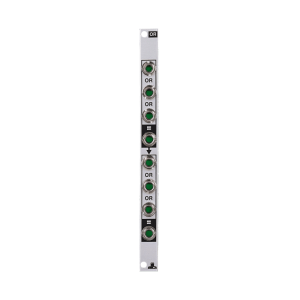

Intellijel OR

Passive OR logic gate/trigger combiner

SKU: 19588

In arrivo

€ 47,99 € 39,34 + IVA

Contattaci per verificare i tempi di consegna

Aggiungi

Restiamo in contattoScopri i nostri orari di apertura

This module allows you to combine different logic source (triggers, gates etc.) into a one logical OR combined output. The top section has 3 inputs and 1 output. This output is normalled into the bottom section input 1 (which also has 3 inputs and 1 output) to allow you to also use the module as a 5-IN 1-OUT The OR is totally passive which means it consumes no power and requires no power cable. *Note this module employs passive diode logic so there is a voltage drop of approximately 0.7V between the input and output.

Continua a leggere

Depth

18 mm

Width

2 hp
