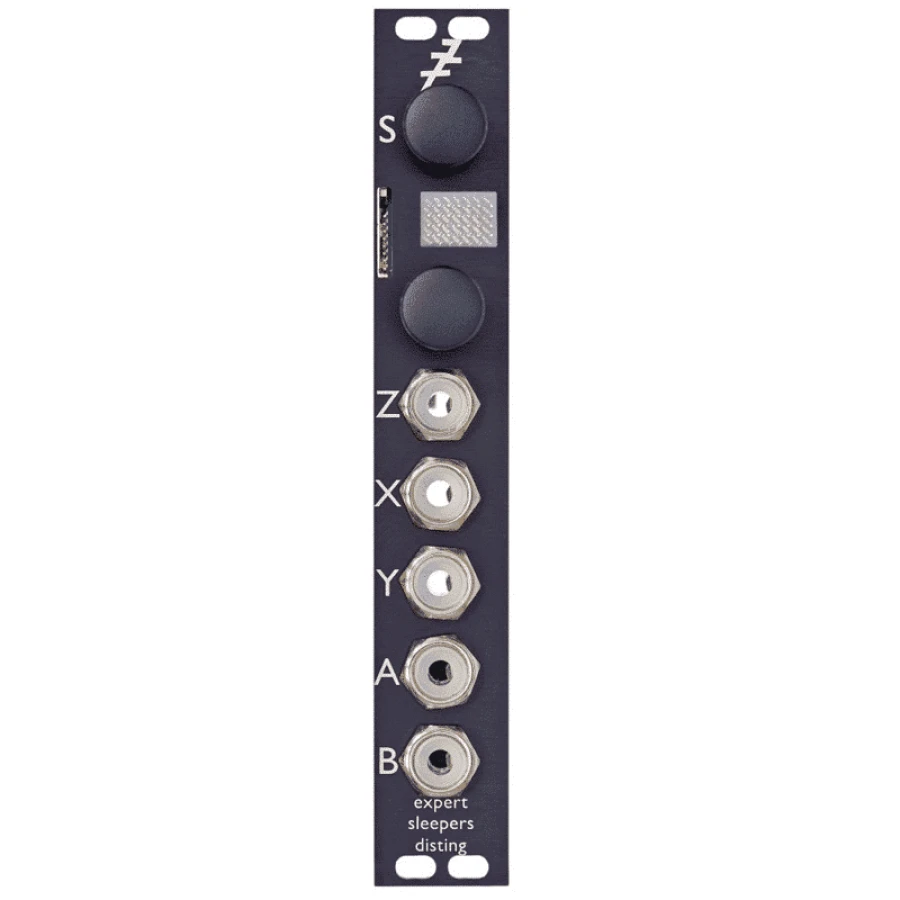

Expert Sleepers Disting mk4

Il Disting MK4 è un mdulo multifunzionale con due ingressi e due uscite. All'interno del modulo sono presenti 60 algoritmi per processare o generare audio o segnali in CV. Oscilattore, filtro, risonatore, waveshaper, LFO, inviluppo, quantizzatore, slew limiter, bit crusher, phaser, dealy o processore logico sono un esempio di come il modulo può essere usato. Grazie agli ingressi in CV è possibile modulare i parametri. Nella nuova versone 4 c'è un matrix display dove cercare nel menù è abbastanza semplice. La microSD è ora sul pannello frontale. E' stato integrato un " precision clock" così da generare dei perfetti segnali intonati. Gli algoritmi del Disting sono divisi in 5 banchi con 4 gruppi ciascuno. Nel dettaglio ecco le operazioni possibili:

• Bank 1 / Group 1:
  • Precision adder with integer voltage offsets
  • Four quadrant multiplier with integer multiply / divide
  • Full-wave rectifier
  • Minimum / maximum detector
  Bank 1 / Group 2:
  • Linear / exponential converter
  • Quantizer with selectable scales
  • Comparator with adjustable hysteresis
  • Dual wave shaper
  Bank 1 / Group 3:
  • Sample and hold with noise source and adjustable slew rate
  • Slew rate limiter with linear and exponential slew
  • Pitch and envelope tracker
  • Clockable delay / echo
  Bank 1 / Group 4:
  • LFO with through zero frequency control and wave shaping
  • Clockable LFO with multiply / divide and wave shaping
  • VCO with linear FM (Sine and saw outputs)
  • VCO with wave shaping (Saw / triangle and pulse outputs)
  Bank 2 / Group 1:
  • Precision adder with fractional voltage offsets
  • Voltage controlled delay line (For vibrato, chorus and flange effects)
  • Clockable ping pong delay
  • Clockable ping pong delay with input pan control
  Bank 2 / Group 2:
  • Resonator for drum synthesis
  • Vocoder with twelve bands
  • Phaser with up to ten stages
  • Bit crusher
  Bank 2 / Group 3:
  • Tape delay with voltage controlled tape speed
  • State variable filter with smoothly variable filter type
  Bank 2 / Group 4:
  • Low-pass / High-pass filter
  • Low-pass / Band-pass filter
  • Band-pass / High-pass filter
  • Band-pass / Notch filter
  Bank 3 / Group 1:
  • AR envelope
  • AR envelope with push function
  • AR envelope and VCA
  • AR envelope and VCA with push function
  Bank 3 / Group 2:
  • Dual AR envelope
  • Dual AR envelope with push function
  • Euro to Buchla converter
  • Buchla to Euro converter
  Bank 3 / Group 3:
  • Clockable AD envelope with mute function
  • Clockable AD envelope with gate function
  • Clockable AD envelope with trigger function
  • Clockable AD envelope and VCA
  Bank 3 / Group 4:
  • Shift register (Random CVs)
  • Shift register (Random quantized CVs)
  • Shift register (Random triggers)
  • Shift register (Random dual triggers)
  Bank 4 / Group 1:
  • ES-1 emulation
  • ES-2 emulation
  • Pitch reference
  • Frequency reference
  Bank 4 / Group 2:
  • Tuner
  Bank 4 / Group 3:
  • Crossfade / Pan
  Bank 4 / Group 4:
  • Empty
  Bank 5 / Group 1:
  • Audio playback
  • Clocked audio playback
  • Audio playback with V/octave
  • Audio playback with Z speed
  Bank 5 / Group 2:
  • Empty
  Bank 5 / Group 3:
  • MIDI file playback (clocked)
  • MIDI file playback (free running)
  • Audio playback with end CV
  Bank 5 / Group 4:
  • Empty

Il firmware del Disting può essere aggiornato via MicroSD card. Connessioni: 2 segnali di ingresso ( X e Y ) 2 segnali in uscita ( A e B ) 1 ingresso CV ( Z )   Dimensioni: 3U Modulo Eurorack, 4 HP , 42 mm profondo Assorbimento PSU: 50 mA a +12 V e 20 mA a -12 V
