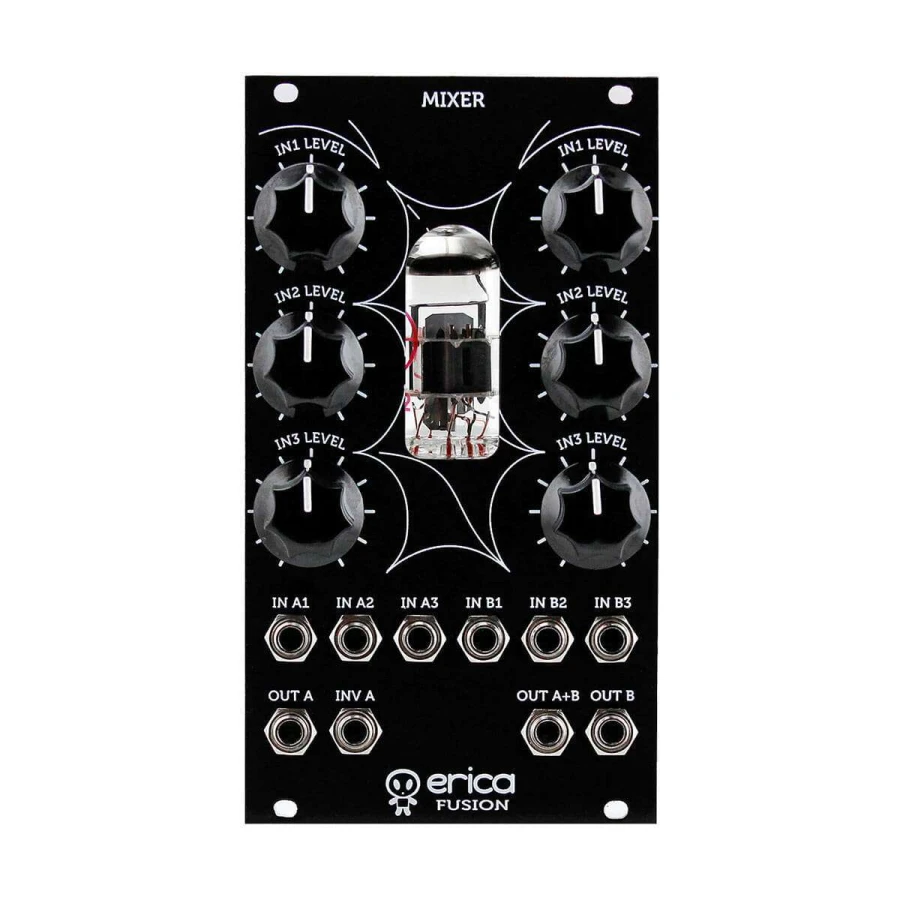

Erica Synths Fusion Mixer V3

Erica Synths Fusion Mixer V3

Un mixer per miscelare e distorcere i segnali all'interno del circuito valvolare

Erica Synths Fusion dual Mixer is designed to mix and overdrive audio signals on the vacuum tube.

Features

• 6 audio inputs
• Two independent 3-input mixer
• Sum of all 6-inputs
• Soft tube overdrive

Use the Fusion Mixer as two independent 3-input mixers (also for stereo signal mixing) or a 6-input mixer. Special feature of the Fusion Mixer – great tube overdrive effects when level knobs are set to 3 o’clock or above. When used with drum machines, it even emulates sidechain compressors. When used to mix signals from VCOs Fusion Mixer it works as waveshaper, especially, if pulse width modulated pulse signals is used in one of inputs. All Fusion modules by default are configured to work with regular eurorack PSU. Due to the fact that cold tube heaters have lower resistance, Fusion modules have significant power consumption peak at startup, when power consumption almost doubles for 1-2 seconds. This is not a problem with linear PSUs that have power inertia, but may cause switching PSU internal protection to turn off power supply. Please make sure your PSU has some headroom before installing multiple Fusion modules. If you need a 6 to 6 pin  power cable included to your order (suitable for 6VAC PSU), please write that in the comment section during checkout process.

Technical specifications:

Input signal level	up to 20V ptp
Output signal level	10V ptp
Mixer GAIN	1
Power supply	bipolar +-12V , eurorack standard
Power consumption	Eurorack PSU configuration: 160mA@+12V, 10mA@-12V
Module width	14HP
Module depth	25mm

Please, refer to the user manual below for all possible power supply configurations!
