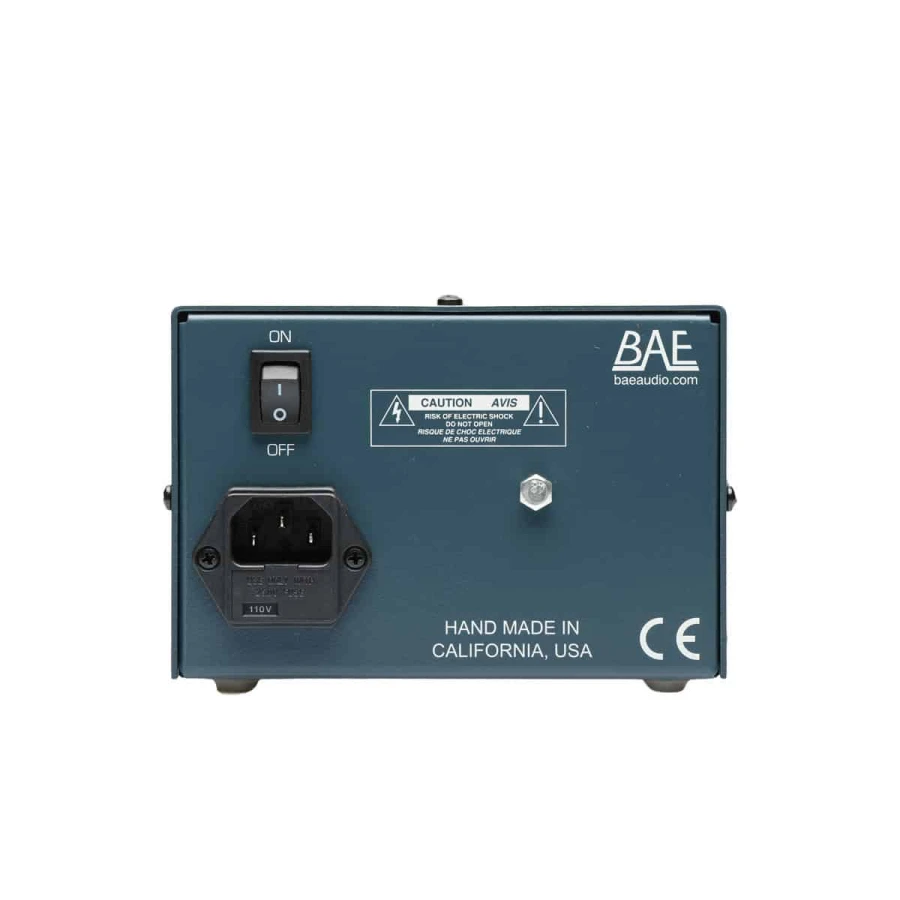

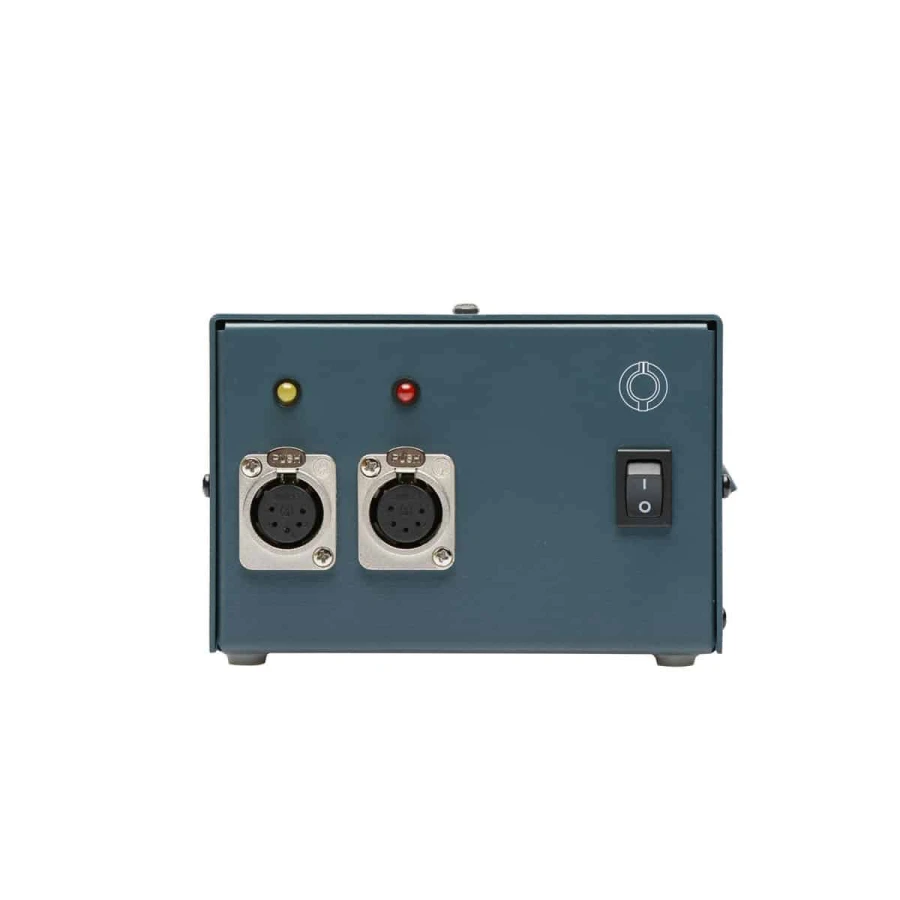

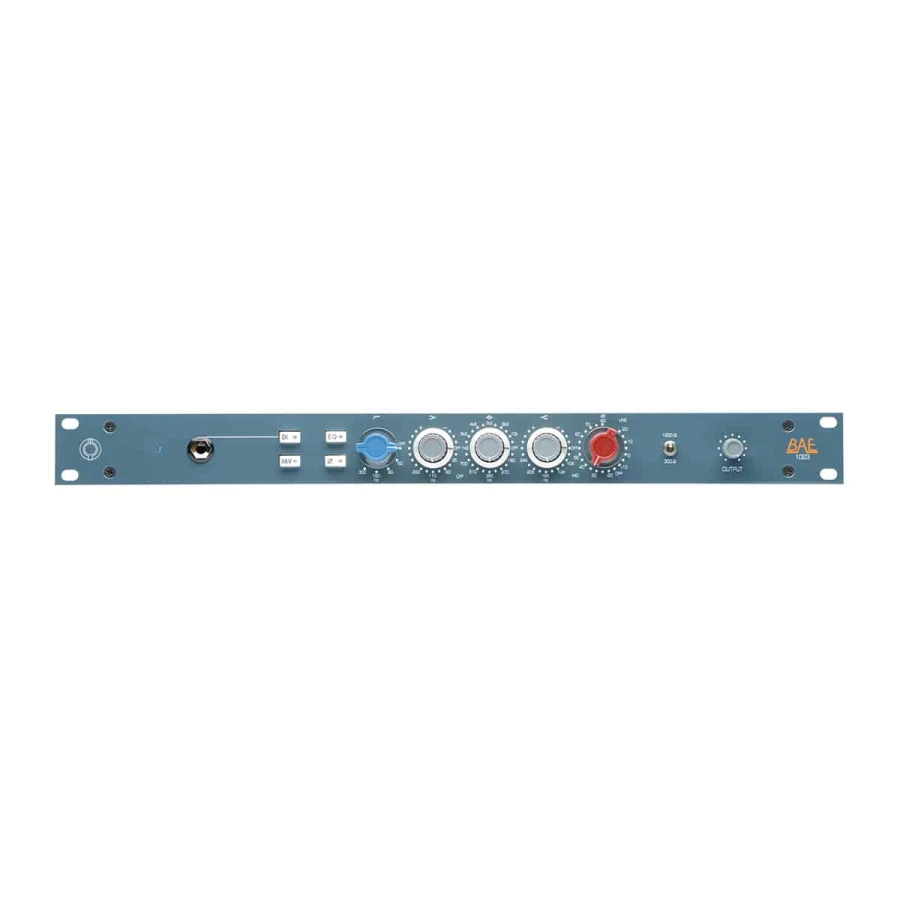

Channel Strip stile Neve 1073 con aggiunta di frequenze nelle sezioni Medie e Alte - PSU inclusa

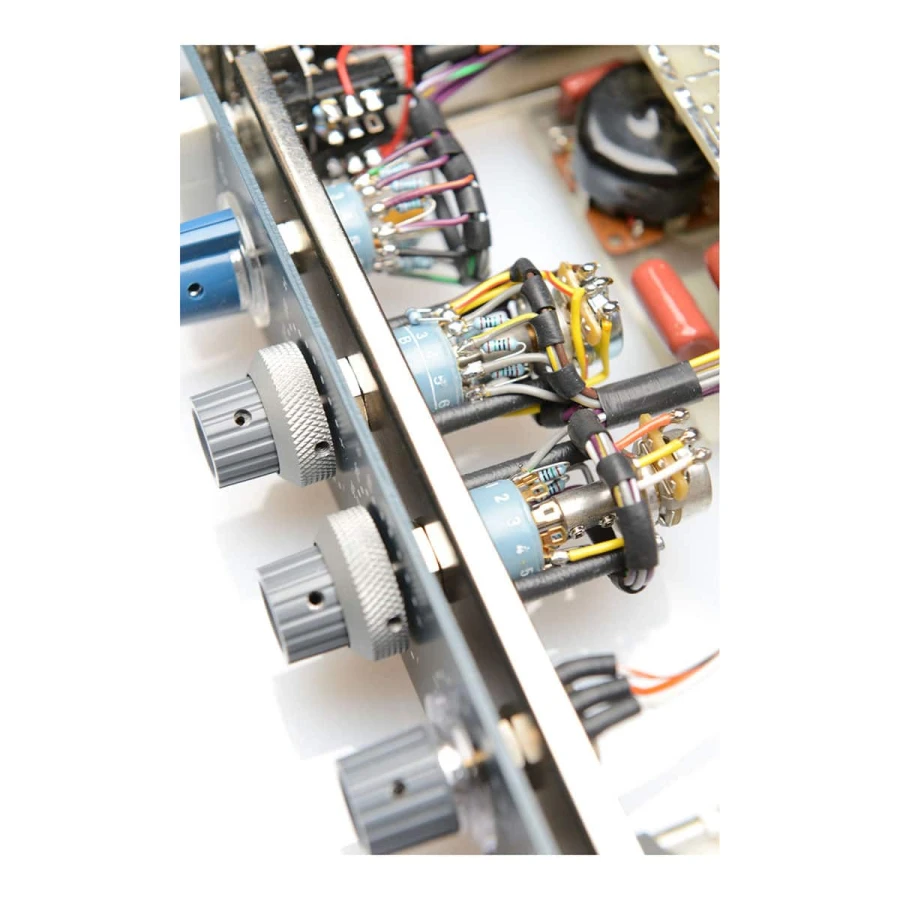

The 1023 is completely handwired using Carnhill (St. Ives) transformers. It has the exact same mic/line preamp as the 1073, but with significantly more frequencies in the mid and high sections. Aside from simply offering more frequency settings to play with, these expanded EQ sections also allow you to play the mid bell curve directly against the high and low shelves where they overlap. This capability opens the tone shaping possibilities in very interesting and musical ways.

• High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
• Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
• Mid Range: +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz.
• High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
• EQ Button: Switches the equaliser on or off
• Phase Button: 180°

---

Specifiche Tecniche

strong>Frequency Response 10Hz to -3dB at 55kHz 3 Band Equaliser HF: +/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz MF: +/-18dB +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz High Pass Filter 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz Mic Input Impedance ≈1200/300 ohms Line Input Impedance 10k ohms DI Input Impedance ≈150k ohms Output Impedance 65 ohms Common Mode Rejection Ratio 100dB min @ 60Hz Maximum Output Level +27.4 dBu @ 600Ω Power Requirements 115/230 VAC, 28W Gain dB 0 to 80 dB Equivalent Input Noise -110 dBu; Unweighted 300kHz Bandwidth Weight (Module/Rackmount) 6 LBS/2.72 KG 10 LBS/4.54 KG Dimensions in Inches (Module/Rackmount) 45 mm W x 8.75 inches H x 10.5 inches D 19W x 1.75L x 9D
