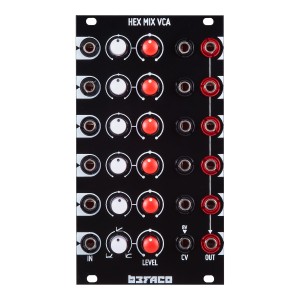

Befaco Hex Mix VCA

Six chanel VCA / Mixer with continuous shape function Log-Lin-expo on a pot

Befaco
SKU: 117536
  • Coming soon

255,00 Ex VAT

For European customers, select your country to view the correct price including VAT.

  • Clock icon Contact us to check delivery time
  • 6 channel VCA
  • Linear, exponential and logarithmic response.
  • Selectable mixer function.
  • Expander connection to plug every channel of an Hexmix VCA directly.

Befaco Hex Mix VCA

Six chanel VCA / Mixer with continuous shape function Log-Lin-expo on a pot

Hexmix VCA is a compact six channel VCA with an unique response curve range from logarithmic to linear and to exponential using a pot.
All outputs are routed to output six to act as a mixer, with a normalization of each one to remove each channel from the Mix.

The module can act as six independent VCAs as well as a Mixer for all the inputs (Selectable via a switch).

Every VCA has a response pot for the incoming CV, being full logarithmic at maximum setup and full exponential at minimum setup, having the linear response in the center position.

Level pot of each channel is an attenuator of the signal coming out of each VCA.

Jacks are normalled to 10 volts, so when we have no CV present VCA would be fully open and our Level pot will act as a volume.

SPECIFICATIONS

  • Current needs: +12V: 50mA, -12V: 50mA
  • Width: 14 HP
  • Depth: 20mm, (28mm DIY) including power connector
  • Aluminium, heat-treated front panel.
  • Designed, kits prepared and completed modules assembled in Barcelona.

Depth

20 mm

Width

14 hp
