Lindy Splitter HDMI 18G, 4 Porte

Distribute one HDMI signal across four displays

SKU: 97057

Out of Stock

€ 101,50 Ex VAT

For European customers, select your country to view the correct price including VAT.

Let's stay in touchDiscover our opening hours

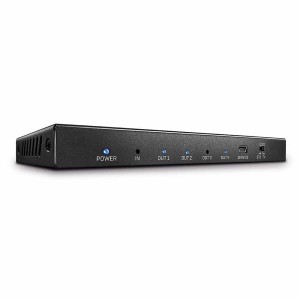

Lindy 4 Port HDMI 2.0 18G Splitter

Distribute one HDMI signal across four displays

Split a single HDMI 2.0 source across 4 HDMI displays
Supports resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
HDCP 2.2 support for enhanced compatibility
EDID Management for hassle free installation
2 Year Warranty

The Lindy 4 Port HDMI 2.0 18G Splitter is a compact, high quality solution for distributing HDMI 2.0 18G signals across multiple displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical facilities or ensuring audiences do not miss any of the action in dual display sports bars. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display. The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen.

Specifications

Specifications

AV Interface: HDMI
Interface Standard: HDMI 2.0
Supports Bandwidth: 18Gbps
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
Supported Audio: Audio Pass-through
Separate Audio Ports: -
CEC Support: -
Serial Interface: -
Special Features: EDID emulation

Connectors

Input: 1 x HDMI (Female)
Output: 4 x HDMI (Female)
Control: -
Power: 5.5/2.1mm DC socket

Physical Properties

Dimensions (approx.) WxDxH: 163x63x16mm (6.42x2.48x0.63in)
Housing Material: Metal
Net Weight: 0.373kg (0.82lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% RH (Non-condensing)
Power Requirements: 5VDC 1A
Colour: Black

Miscellaneous

Packaging Type: Carton box
Packaging Dimensions: 248x55x183mm (9.76x2.17x7.2in)
Gross Weight: 0.526kg (1.16lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

HDMI Splitter
Multi-country PSU (UK, EU, US & AUS)
Lindy Manual

Ports

Signal type

HDMI
