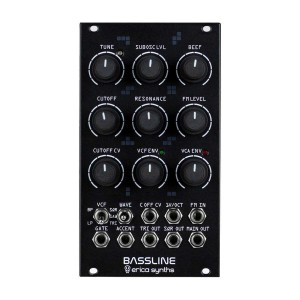

Erica Synths Bassline

Fully analogue synth voice module with integrated VCF and VCA decay envelopes

Erica Synths Bassline is fully analogue synth voice module for ultimate basslines and leads. It features AS3340 VCO with three waveforms, a filter inspired by Erica Synths Acidbox and unique features - transistor based suboscillator and two BBD lines that emulate VCO detune creating a sound of massive polysynth from one oscillator. Accent provides more expression to the bassline, by adding volume and opening the VCF slightly.

Features

  • Fully analogue circuit
  • Great 1V/oct tracking
  • Simultaneous Triangle, Square and Master outputs
  • Accent input
  • Transistor-based suboscillator
  • BBD-based VCO detune emulation
  • Integrated VCF and VCA decay envelopes
  • LP/BP VCF
  • External VCO FM and VCF cutoff CV inputs
Pitch range C0-C8
Audio output level -5...+5V
CV level (full span) -5V-+5V
Power consumption +110mA, -70mA
Module width 14HP
Module depth 35mm

Depth

35 mm

Width

14 hp
