SPL 2 Control (Black)

Speaker and Headphone Monitoring Controller

SKU: 48226

Available

€ 671,46 € 545,90 + VAT

Normally shipped in 8-10 working days

Add

Let's stay in touchDiscover our opening hours

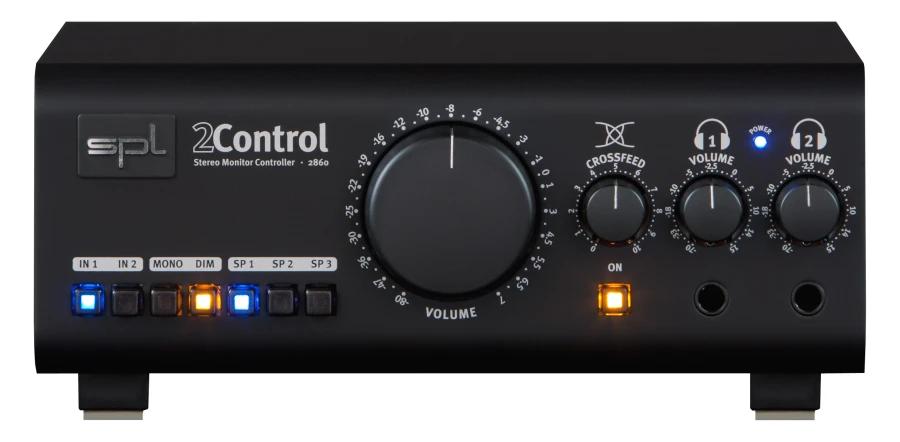

SPL 2Control (Black)

Speaker and Headphone Monitoring Controller

The 2Control with its unique Crossfeed control allows to judge a stereo panorama on headphones just like with loudspeakers. The unit’s concept is consequently based upon duality: Two channels, two sources, two loudspeaker sets, two headphones—2Control. – Speakers and headphones monitoring center – Analog volume control for your DAW – Two excellent headphone amplifiers – Crossfeed control – Extend the range of headphone applications – High-grade balancing stages – Unbalanced connections (e. g. RCA, TS Jack) – Separate mono speaker output

Specifications

Electronically balanced instrumentation amplifiers

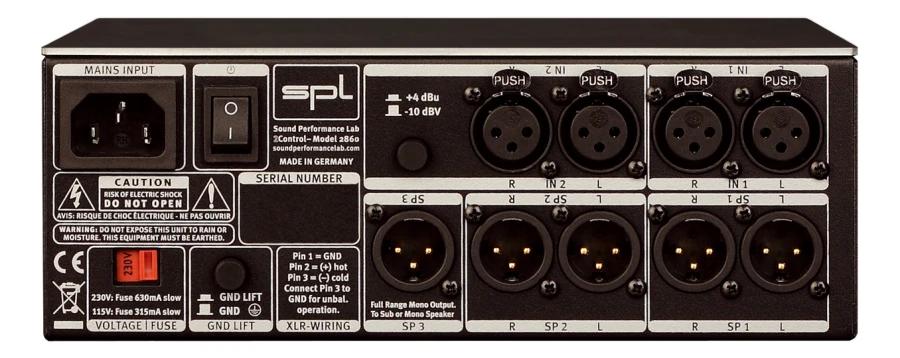

Input sockets: XLR
Output sockets: XLR, Stereo TRS
Nominal input level: IN 1: +4dBu, IN 2: +4dBu/-10dBV
Input impedance: 22kOhm
Output impedance: 75Ohm/Headphones: 22 Ohm
Max. input level: 21,3dBu
Max. output level: 21,3dBu
Volume control range: -80dB to +6,6dB
Headphones: -65dB to +14,9dB
Frequency range: 10Hz to 100kHz (-3dB)
CMRR: 60dB (@1kHz, 0dBu input level, unity gain)
THD&N: 0,002% (@1kHz, 0dBu input level, unity gain)
Signal to noise ratio: -96dB/Headphones: -85dB (A-weighted)
Crosstalk L/R: 70dB (@1kHz)
Dynamic range: 116dB
Power consumption: ca. 25W
Trasformatore torroidale con voltaggio selezionabile
Fusibile (slow blow): 230V/50Hz: 315mA, 120V/60Hz: 630mA
Housing (BxHxT): 215x80x220mm
Depth w. controls & sockets: 245mm
Height with feet: 95mm
Front height w. opened feet: 126mm
Weight: 2,1kg

Hardware format

Desktop
