ATC SCM200 ASL PRO

Active 3-way Nearfield studio monitor

ATC
SKU: 18572

Request a quote

Call the number +39 06.5826324, email us oppure compila il form per richiedere un preventivo
Warranty extended to 6 anni

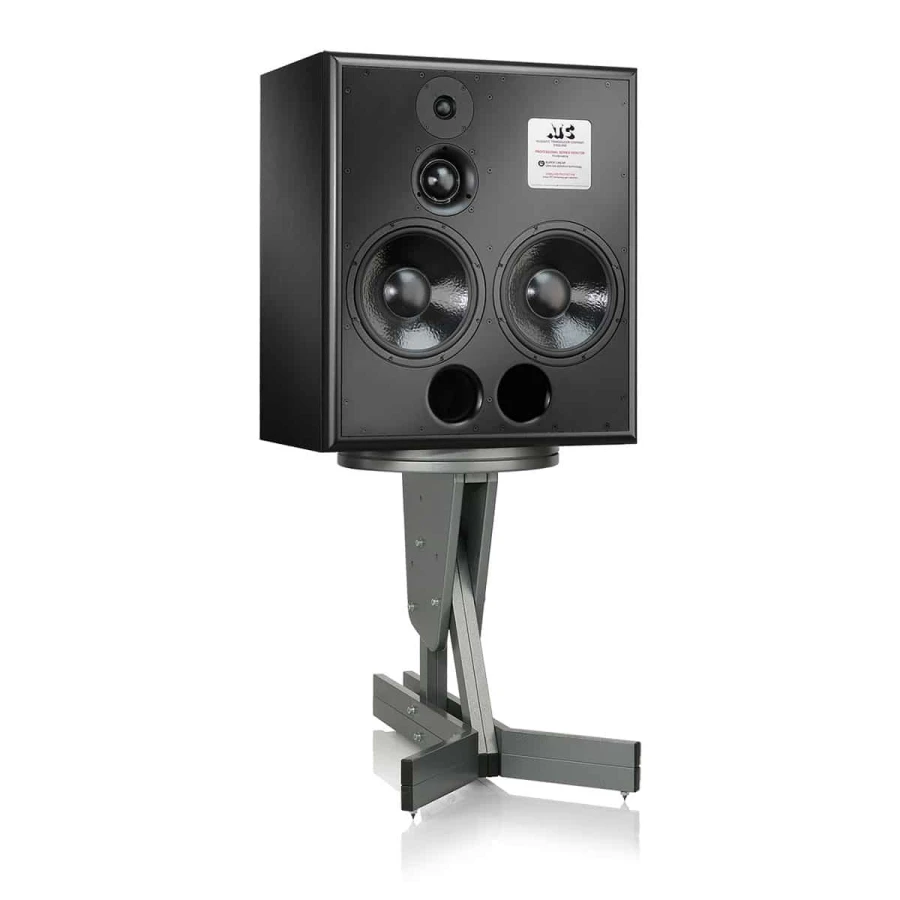

ATC SCM200 ASL

Active 3-way Nearfield studio monitor

The SCM200ASL Pro is a 3-way active main studio monitor capable of continuous SPLs up to 118 dB/1m. The HF, mid and twin 314mm Super Linear bass drivers are driven by a separate 850W per channel amplifier block.

Specifications:

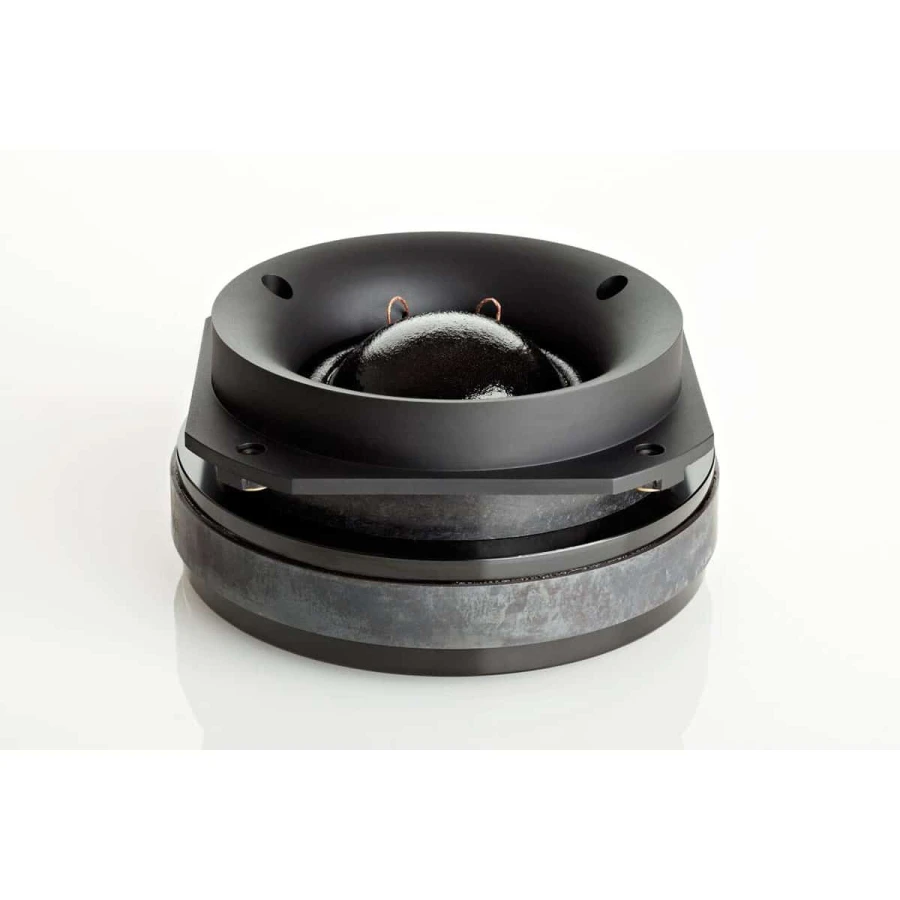

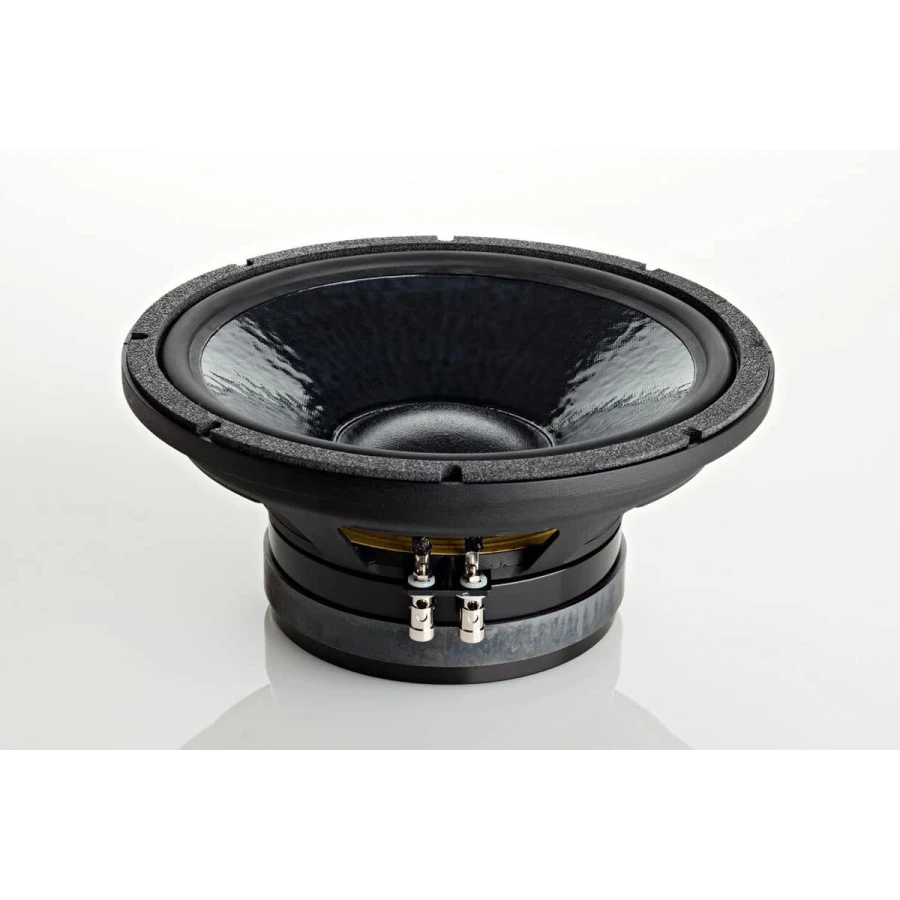

  • Drivers: HF 34mm Mid 75mm LF 2 x 314mm
  • Amplitude Linearity ±2dB 60Hz – 12kHz
  • Cut-off Frequencies (-6dB free standing) 32Hz – 20kHz
  • Cut-off Frequencies (-6dB soffit mounted) 25Hz – 20kHz
  • Max Continuous SPL @ 1 metre  118dB
  • Dispersion: Horizontal  ±80° Coherent Vertical  ±10° Coherent
  • Amplifier Output: Bass 275 + 275 Watts RMS Mid 200 Watts RMS High 100 Watts RMS
  • Overload Protection  Active FET Momentary Gain Reduction plus thermal tweeter protection
  • Input Impedance  >10k ohms
  • Input Sensitivity 2V
  • Crossover Frequency 380Hz – 3.5kHz
  • Input Connector Male XLR
  • Cabinet Dimensions (HxWxD) 830 x 730 x 440mm
  • Overall Weight 116kg

Price for pair

Speaker type

Active
