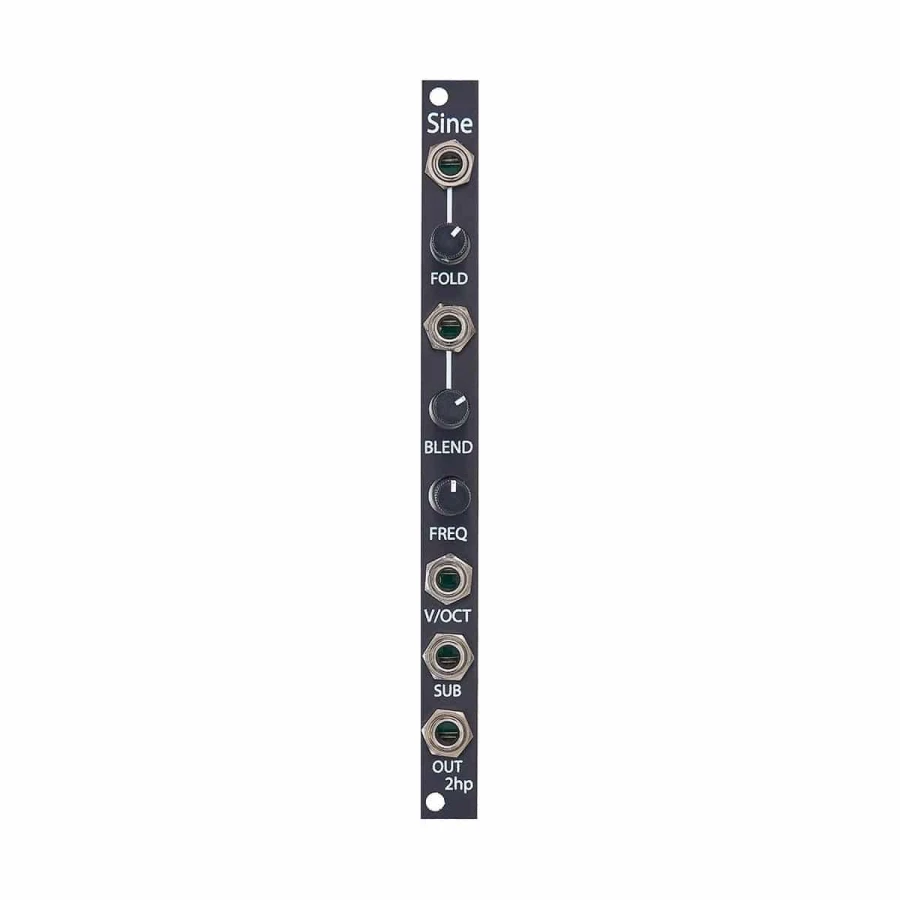

2hp Sine Black

Harmonically pure VCO with two distinct outputs

SKU: 48182

Coming soon

€ 171,83 € 138,57 + VAT

Add

Let's stay in touchDiscover our opening hours

2HP Sine Black

Harmonically pure VCO with two distinct outputs

Sine is a harmonically pure VCO with two distinct outputs. The primary output contains a perfect sine wave with a wide frequency range and pristine volt per octave tracking. The Sub output features two sine tones that can be blended together to achieve a mix of one octave below, or a fifth above the primary output's frequency. In addition, both outputs have an internal wavefolder that adds harmonic content to the signal allowing for spectrally complex tones within a single module. Keep your tones pure (or not!) with Sine.

Digital Architecture ensures harmonically perfect sine wave
Internal Wavefolding
Two distinct outputs
Sub output can be octave below or fifth above

Download the Sine Manual here

Specifications

80 mA +12V
4 mA -12V
0 mA 5V
Depth: 42 mm
Width: 2 hp

Depth

42 mm

Width

2 hp
