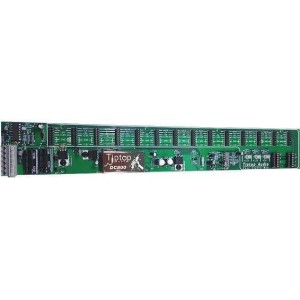

TipTop Audio Zeus Passive Bus Board

The Zeus Passive Bus Board is used to distribute power to modules coming from either the first generation of Zeus Powered Bus Board, uZeus or any other power supply available from other manufactures. The Passive Bus Board contain both standard quick fit terminals as well as screw terminal block for connecting to power. The quick fit connect are mounted on the bottom side of the bus board to provide clean wiring, while the screw terminal blocks available simultaneously upfront for the most simple and easy connection to power if needed. Although called Passive, the Zeus Passive Bus Board can produce up to 220ma +5V supply by using its own built in regulator, giving you the confidence that a 5V supply will be here for you in case one of your new modules requires it.
