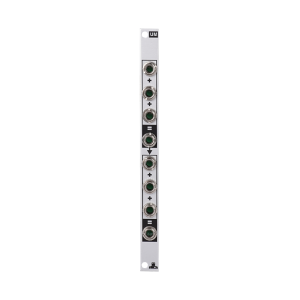

Dual 3:1 audio and CV mixer (up to three buffered inputs with a single buffered output)
You can neither control the input nor the output levels. Output level equals sum of input levels.
– Output of top mixer is normalled to the bottom mixer to give a 6:1 mix
– Outputs are phase correct (e.g. The output audio is not inverted)
– The input signals are neither boosted nor attenuated (unity mixing). Their resultant sum is the output. e.g.
Input 1: 2V
Input 2: 4V
Input 3: 3V
Output1: 9V (Input1 Input2 Input3 = 2V 4V 3V = 9V)
Atttention – In it´s default setting the bottom half of the unityMixer is 6dB softer than the upper part. This can be deactivated by changing a jumper on the circuit.
