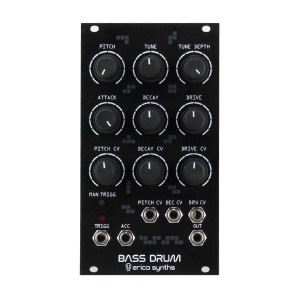

Erica Synths Bass Drum

Fully analogue, 909-inspired, modules for serious techno sound with lot of CV controlled parameters for modular setups

Erica Synths
SKU: 42829
  • Próximamente

272,25 € 225,00 + IVA

  • Clock icon Póngase en contacto con nosotros para comprobar los plazos de entrega

Erica Synths Bass Drum

Fully analogue, 909-inspired, modules for serious techno sound with lot of CV controlled parameters for modular setups

Erica Synths Bass Drum is developed in collaboration with the French company e-licktronick and it's our take on analogue bass drum circuits adapted for modular systems. Massive, punchy sound, Accent & CV control over key parameters of the module make it distinctively expressive in live performances.

Features

  • Pitch
  • Tune
  • Tune Depth controls
  • CV control with attenuators over Pitch, Decay and Drive
  • Manual trigger
  • Accent for better expression
Decay range 400ms - 2200ms
Audio output level -5...+5V
CV level (full span) -5 - +5V
Trigger level 5V
Trigger time 1ms
Accent CV level 10V
Power consumption 40mA@+12V, 30mA@-12V
Module width 14HP
Module depth 35mm
  On this run of modules the Pitch & Decay CV inputs are inverted: rising CV will decrease pitch, falling - increase.

Depth

35 mm

Width

14 hp
