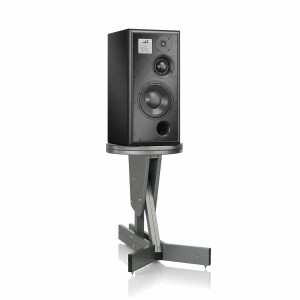

ATC SCM50 ASL

Active 3-way Nearfield studio monitor

The SCM50ASL Pro is an active 3-way system suitable for reference monitoring in medium sized rooms, with a 234mm Super Linear bass driver and ATC’s unique SM75-150S mid range soft dome driver. The active design ensures optimum matching of six MOS-FET amp blocks to the drivers, providing plenty of transient headroom and maximum SPLs of up to 112dB. An LF contour control provides five bass boost settings and a flat reference response.

SPECIFICATIONS

Drivers: HF 1″/25mm, Mid 3″/75mm, LF 9″/234mm Amplitude Linearity (±2dB): 70Hz-17kHz Cut-off Frequencies (-6dB, free-standing): 38Hz, 22kHz Horizontal Dispersion: ±80°, Coherent Vertical Dispersion: ±10°, Coherent Max. Continuous SPL (1 metre): 112dB Crossover Frequencies: 380Hz, 3.5kHz Input Connectors: Male XLR Input Sensitivity: 1V Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer) Input Impedance: Balanced > 10kΩ Amplifier Output: Bass 200W, Mid 100W, High 50W Filters : Even Order Critically Damped Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection Front Panel Indicators: Power On indicator, Gain Reduction warning LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer) Dimensions (HxWxD): 716 x 351 x 400mm (28.2˝ x 13.8˝ x 18.8˝) Depth with amplifier at rear adds 3˝ Weight: 49kg / 107.8lbs Price for pair
