BAE 1084 Module

Neve 1084 Style Channel Strip equipped with Carnhill transformers - Module

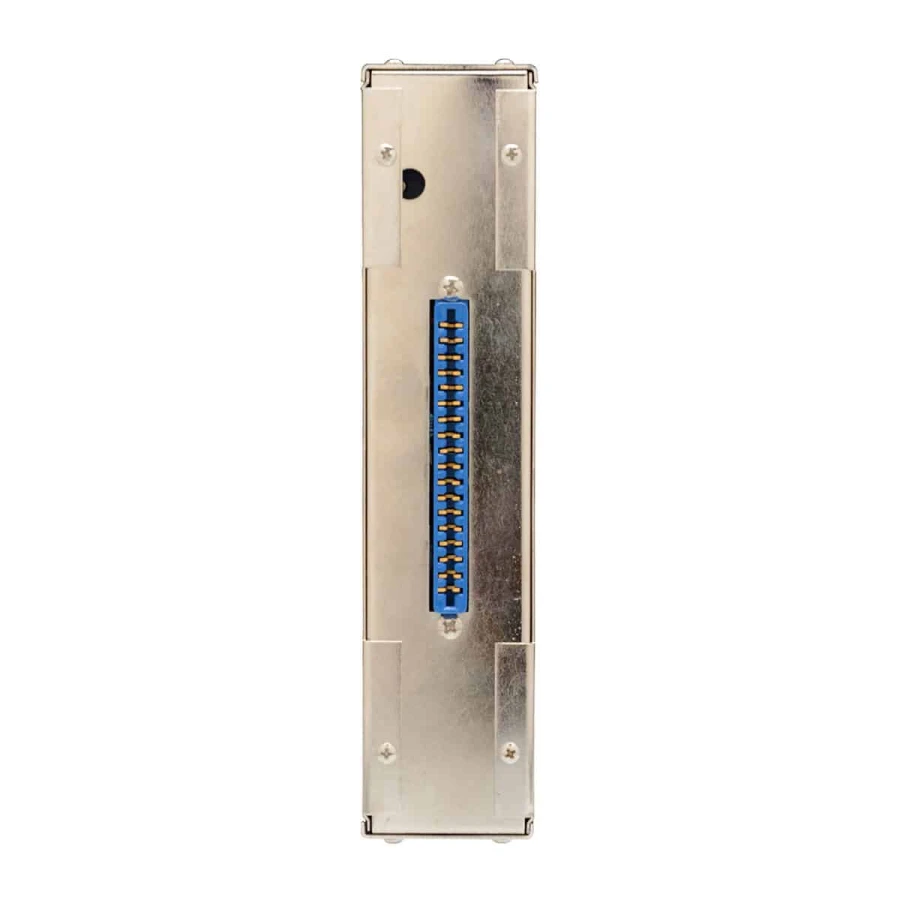

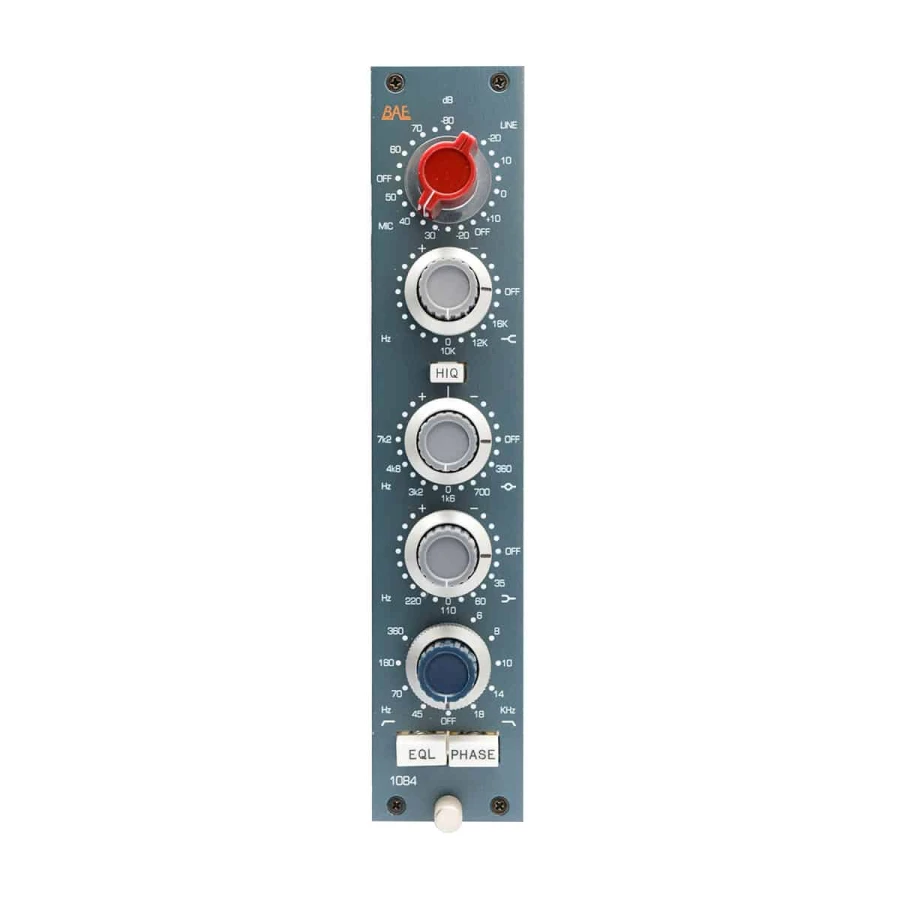

The BAE 1084 is as authentic as you can get to the original, featuring the same St Ives (Carnhill) transformers as the vintage modules, Elma switches and Canford wire. The BAE 1084 looks identical to the original vintage module and will happily retrofit in vintage Neve 80 Series consoles because the entire product is engineered in exactly the same way as the originals: the same chassis construction, connectors, printed circuit board layouts, hand-wired looms, and circuitry.
  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
  • Mid Range: +/-12dB or +/-18dB peaking with switchable 'High Q', selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz.
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°

Specifications

Frequency Response 10Hz to -3dB at 55kHz 3 Band Equaliser HF:+/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz High Pass Filter 50Hz, 80Hz, 160Hz & 300Hz Low Pass Filter 6kHz, 8kHz, 10kHz, 14kHz, & 18kHz Mic Input Impedance ≈1200/300 ohms Line Input Impedance 10k ohms DI Input Impedance ≈150k ohms Output Impedance 65 ohms Common Mode Rejection Ratio 100dB min @ 60Hz Maximum Output Level +27.4 dBu @ 600Ω Power Requirements 115/230 VAC, 28W Gain dB 0 to 80 dB Equivalent Input Noise -110 dBu; Unweighted 300kHz Bandwidth Weight (Module/Rackmount) 6 LBS/2.72 KG 10 LBS/4.54 KG Dimensions in Inches (Module/Rackmount) 45 mm W x 8.75 inches H x 10.5 inches D 19W x 1.75L x 9D
