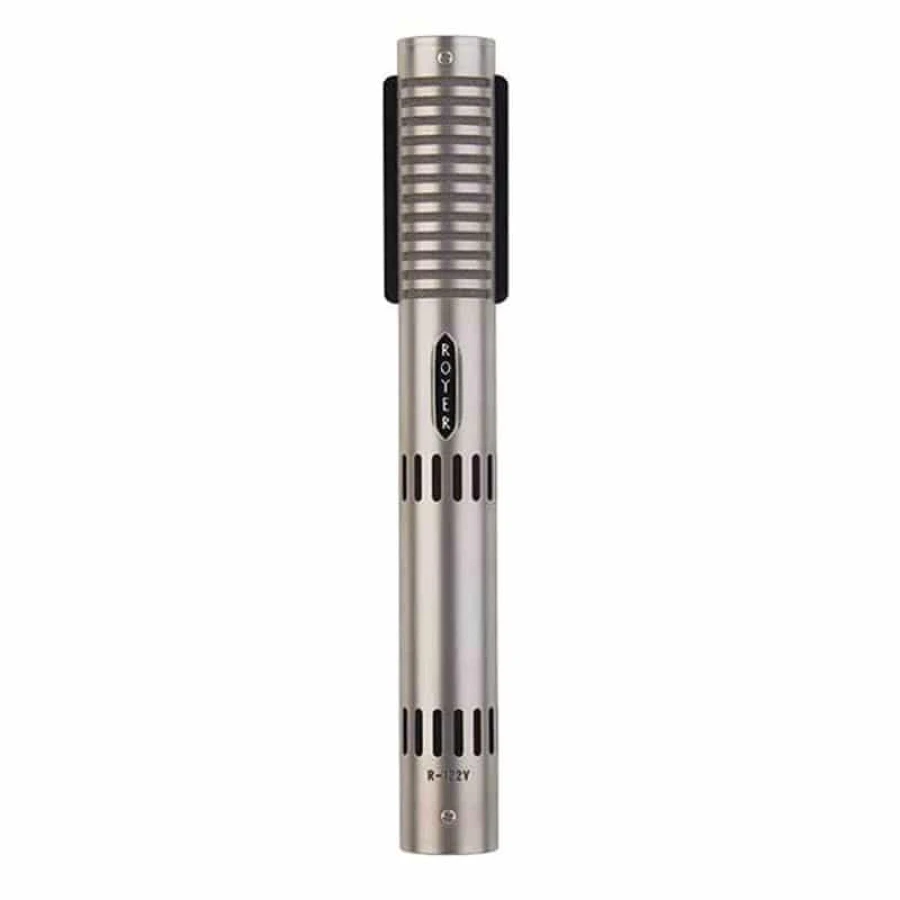

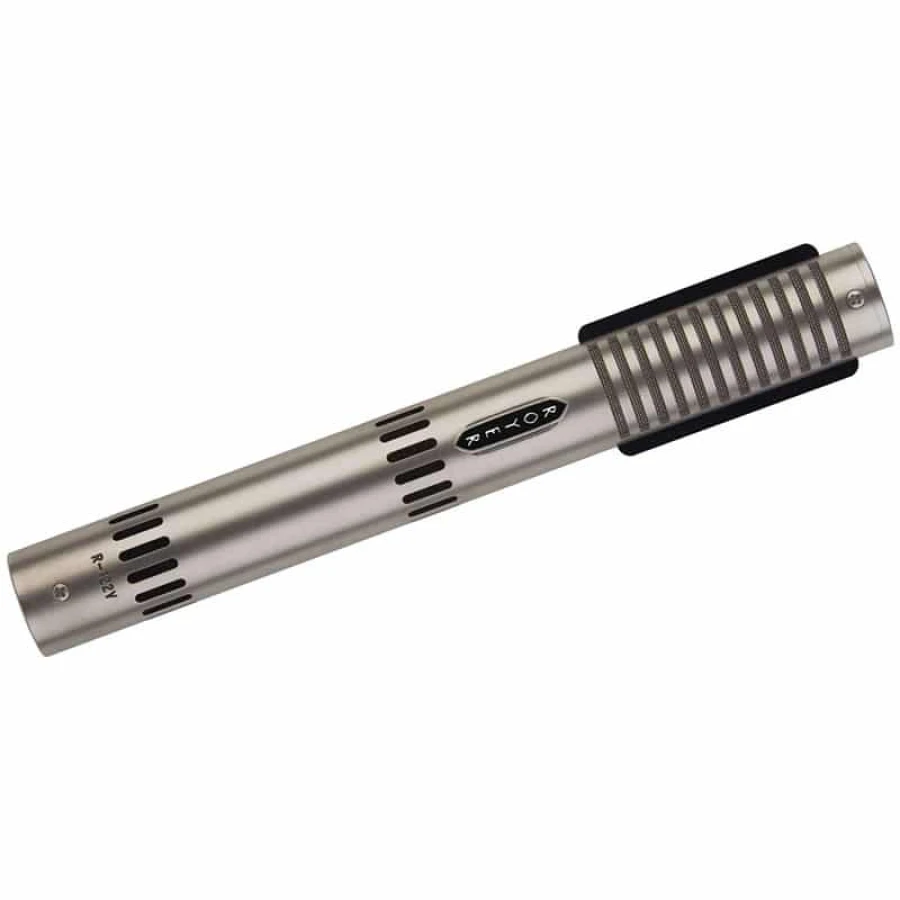

The R-122V is a vacuum tube, studio ribbon microphone utilizing the same patented, large-ribbon transducer assembly found in Royer R-121 and R-122 ribbon microphones. The R-122V is a compact,
monaural, bi-directional microphone and is the first commercially available vacuum tube ribbon microphone. Achieving a new level of performance for ribbon microphones, the R-122V delivers unparalleled richness, depth and detail, especially in the midrange frequencies.
Like its predecessors, the R-122V’s ability to withstand high SPL levels make it well suited for applications that were previously considered off limits to ribbon microphones.
The R-122V’s vacuum tube electronics utilize a standard mil spec 5840 vacuum tube and Royer’s proprietary toroidal ribbon matching transformer (patent pending). A Jensen® 1:1 ratio output transformer provides an electrically isolated, fully-balanced output signal. The R-122V can drive virtually any preamplifier and long cable runs (from power supply to preamp) with ease. The active circuitry provides an optimum impedance match to the ribbon element at all times, preventing over-damping of the ribbon element and assuring consistent microphone performance.
The R-122V utilizes a pure (99.99%), low mass, 2.5-micron thick aluminum ribbon. The R-122V’s unique, patented offset-ribbon transducer assembly incorporates rare earth Neodymium magnets in a specially designed flux frame, which forms a powerful magnetic field while reducing unwanted stray magnetic radiation.
The smooth frequency response and phase linearity of the R-122V, coupled with its classic triode-connected vacuum tube circuitry, enable the R-122V to deliver a consistent sonic performance with stunning realism. Frequency response is excellent regardless of the angle of sound striking the ribbon, and off-axis coloration is negligible.
The R-122V’s offset-ribbon design positions the ribbon element toward the front of the microphone body, which allows for high SPL handling on the front (logo) side and the option of a slightly brighter response when recording on the back side (3 feet and closer; phase reversed in this position).
R-122V FEATURES
Vacuum tube electronics provide high output capability, optimal impedance to the ribbon element and low output impedance
Extremely low self-noise
Operates from a dedicated power supply
High SPL capabilities for electric guitar and percussion instruments
Absence of high-frequency peaks, “ringing” and phase shifts
Ribbon element unaffected by impedance/load, heat or humidity
Very low magnetic leakage
RECOMMENDED APPLICATIONS
Close and distant miking
Strings – solo & sections
Acoustic piano, harp, etc.
Electric and acoustic guitar
Vocals, commercial broadcast, voice over
Brass, horn sections
Drum overheads, room miking
Percussion instruments
Live events-recording and sound reinforcement
Technical Specifications
Acoustic Operating Principle: Electrodynamic pressure gradient with vacuum tube electronics.
Polar Pattern: Figure-8
Generating Element: 2.5-micron aluminum ribbon
Magnets: Rare Earth Neodymium
Frequency Response: 30 – 15,000 Hz ±3 dB
Sensitivity: -40 dB (re. 1v/pa ±1dB)
Self-Noise: < 18 dB
Output Impedance: 200 Ohms, balanced
Rated Load Impedance: 1K-Ohm
Maximum SPL: > 135 dB SPL @ 20 Hz
Power Requirements: Plate supply: 135 VDC @2ma, Filament supply: 6 VDC@ 150ma from dedicated power supply
Dimensions: 206mm L X 25mm W (8 1/8” L X 1” W)
Weight: 300 grams (10.9 oz)
Finish: Burnished Satin Nickel – Matte Black Chrome (optional)
