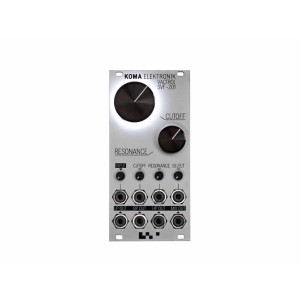

Koma Elektronik SVF201

State Variable VCF (vactrols)

SKU: 20187

Demnächst verfügbar

€ 268,24 € 225,41 + VAT

Kontaktieren Sie uns, um die Lieferzeiten zu überprüfen

hinzufügen

Wir bleiben in KontaktEntdecken Sie unsere Öffnungszeiten

State variable multi-mode filter with optical components (vactrols) that provide for a good sound. Three filter types are available and you can blend between them. Voltage control of cutoff, resonance and mix. The filter has a slope of -12dB/octave and three filter types: low pass, band pass and high pass, available at individual outputs. Besides this you´ll find the Mix parameter that will blend between the filter types manually and by voltages and send the result to the according Mix output. The Mix Out attenuator acts as a normalized CV source if nothing is patched into the Select CV input The resonance can be voltage controlled as well. Soundwise the filter is pretty nice as it has a very unique sound, somehow nasal and metallic; very interesting! the cutoff controls is backlit with a white LED, this can be deactivated by a jumper on the back. 4 Audio outputs: low pass, band pass, high pass, mix 3 CV inputs for cutoff, resonance and mix.

Lesen Sie weiter

Depth

40 mm

Width

12 hp

Koma Elektronik SVF201
