SOMA laboratory LYRA-8 (Black Beast)
Synthesizer based on eight generators is not like a traditional subtractive synthesis VCO, it resemble generators in old electric organs.
The Lyra-8 is a performance-oriented, fully analog drone synthesizer with very organic sound. The instrument features eight oscillators, which can be used separately or stacked to FM voices. For further sound design, there are the Hyper LFO, a superbly sounding Mod Delay and a beefy distortion circuit. Thanks to touch surfaces, the Lyra-8 can be played expressively. – A unique, very inspiring musical instrument.
SPECIFICATIONS
Max output voltage: 2 v 0-to-peak

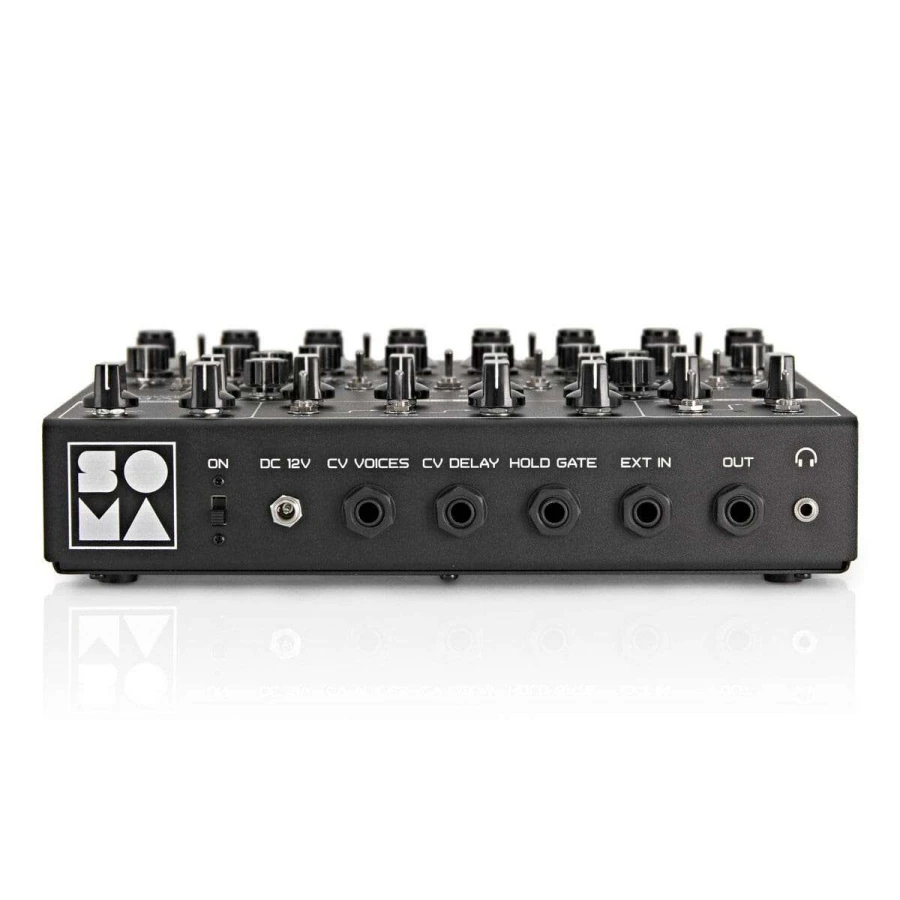

Output connector: mono 6.3 mm TS or TRS (balanced) jack
Output resistance: 100 Ohm
EXT IN: 1 v 0-to-peak
EXT IN connector: 6.3 mm TS jack
HOLD GATE: full HOLD volume +5 V
HOLD GATE connector: 6.3 mm TS jack
CV DELAY: unipolar, range of 0 to +5 volt
CV DELAY: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 2 watt
Dimensions: 266 x 266 x 62 mm
Weight (without power supply and packaging): 2.5 kg
