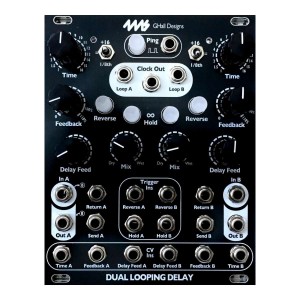

4MS DLD Dual Looping Delay (Black)

Delay Module

  • Black Friday Synth Preview
  • While stocks last
4MS
SKU: 67455
  • Available

299,18 337,71 Ex VAT

For European customers, select your country to view the correct price including VAT.

  • Clock icon Order by 12:00 noon to receive this product on the day 09/11/2024
  • Two independent delay/loop channels, synchronized to a common time base
  • Almost 3 minutes delay/loop time per channel (2:54) in default storage mode (16-bit)
  • 48kHz/16-bit sampling rate, option available for 24-bit storage
  • Extremely quiet, low noise and low jitter design
  • Normalled connections of input and output for flexible use in mono, stereo, or dual mode
  • Tap tempo button and clock Ping input set the basis for one "beat"
  • Delay/loop time set as a number of musical beats (or fractions of beats) using the Time knob, switch, and CV jack
  • Sample-accurate clock output for perfect synchronization
  • Loop clock outputs for each channel
  • Time switches change range of Time knob from 1/8th notes up to 32 bars
  • Digital feedback, up to 110%
  • Delay Level control, independent of dry/wet signal mix
  • Infinite Hold mode disables recording input and fixes regeneration at exactly 100%
  • Reverse mode plays memory contents backwards
  • With an infinite loop locked, knobs or CV can "window" around memory, by shifting the loop
  • Triggered toggle inputs for Infinite Hold and Reverse
  • Send and Return on each channel for feedback with external modules
  • CV jacks to control Time, Level, and Feedback
  • As new features are developed, firmware can be updated by playing an audio file into the DLD

4ms Dual Looping Delay (Black)

Modulo di ritardo

Il Dual Looping Delay (DLD), progettato da 4ms e Gary Hall, è un processore audio avanzato per la sintesi creativa. Non un nastro o un'emulazione analogica, ma un moderno ritardo digitale cristallino, il DLD combina caratteristiche di ritardo, looping e sincronizzazione a tenuta di campione per l'acquisizione e la modifica del suono potente e dinamica. Il DLD è progettato per integrarsi perfettamente con la base dei tempi modulare e i dispositivi di sequenziamento come il Quad Clock Distributor (QCD) da 4 ms, ecc. Nuove funzionalità nella versione firmware 5:
  • Ping Lock per ogni canale
  • Modalità Quantized Inf/Rev/Time Change
  • Audio a 24 bit (selezionabile con un ponticello)
  • Reverse e Inf Hold possono essere attivati con gate o trigger
  • La manopola Delay Feed può essere selezionata come conicità audio o lineare
  • La corrente continua in fuga con impostazioni di feedback elevate (ad es. ritardi di risonanza) viene eliminata
  • Il silenziamento automatico ora ha un attacco e un decadimento di 1 ms
  • Il tempo di dissolvenza incrociata (CFT) per le giunzioni è ora variabile (impostato in System Mode da 0ms a 500ms)
  • Selezione di algoritmi di De-jittering del clock esterno per consentire al DLD di sincronizzarsi con molti tipi di clock esterni
  • L'uscita da Infinite Hold viene riprodotta senza riavviare il loop

Specifiche Tecniche

  • Module size:
    • 20 HP Eurorack format module
    • 0.98" (25mm) maximum depth with power cable
  • Power consumption:
    • +12V rail: 188mA max (jumper set to 5V)
    • -12V rail: 48mA max
    • +5V rail: not used
    • Connect red stripe of power cable towards the bottom of the module, which is marked with a white stripe and the words -12V and POWER
  • Audio Inputs:
    • 0Hz (DC) to 24kHz
    • 16.8V peak-to-peak maximum before clipping (when AC coupled)
    • Optional jumper to choose DC or AC coupling on input.
  • Audio Outputs:
    • 0Hz (DC) to 24kHz with maximum -1.7dB difference between input and output (see technical specification section)
    • +10.5V to -10.5V maximum output
    • Soft limiting compression allows for saturation before clipping (can be disabled)
  • Clock outputs (Main, Loop A, Loop B):
    • 0V to 8.2V
    • +/- 2.4us maximum jitter (i.e. 0.001% at 120 BPM)
    • Rise or Fall time: <1us
    • Pulse Width (Trigger mode) 22ms
    • Gate mode 50% (square wave)
    • At clock speeds faster than 22Hz, the clock output becomes 50% duty cycle
Included with the DLD:
  • 16-to-16 pin power cable
  • 4 M3 Knurlie screws

Depth

25 mm

Width

20 hp
