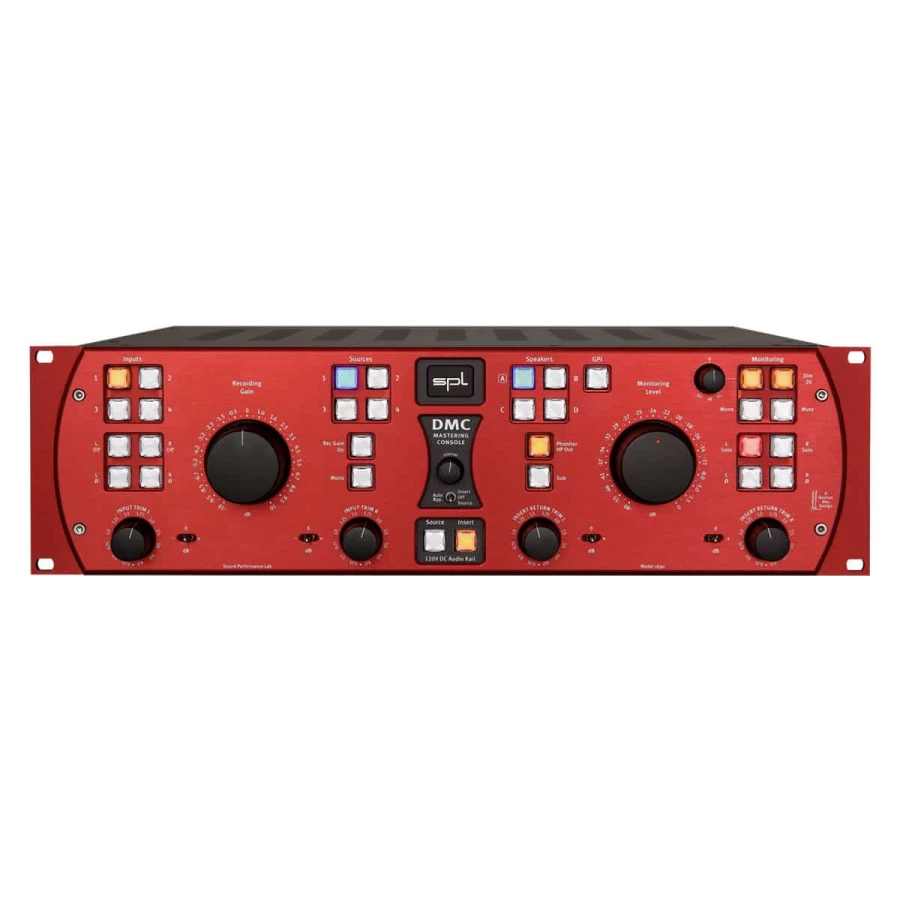

SPL DMC (Red)

Stereo Mastering Console

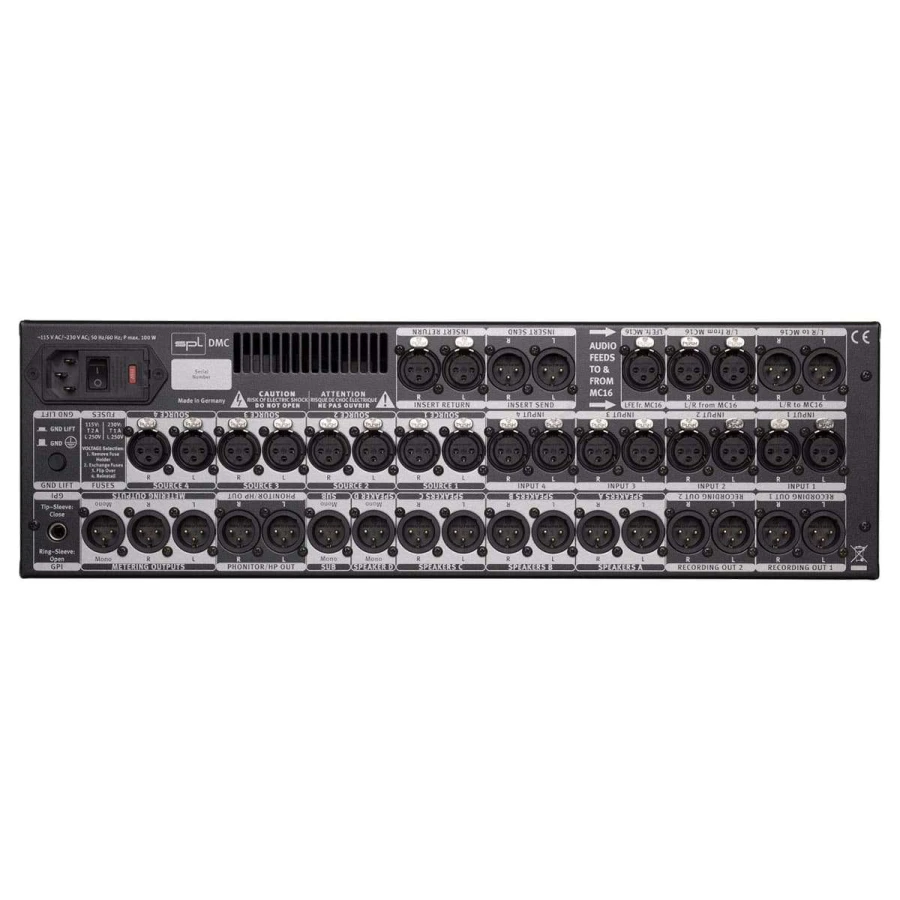

The new DMC stereo mastering console is engineered from the ground-up making it not only more flexible with better specs than SPL’s previous console, but also more ergonomic and sized to fit in all types of studio furniture. The 3RU console has 4 stereo inputs and 4 stereo sources, with 2 stereo recording outputs, as well as 3 stereo and 2 mono speaker outputs that can be expanded with the new MC16 controller. The new DMC console operates on the same unequaled 120V DC audio rail like each of the other SPL Mastering Series processors.

Dual channel mastering console (3U)
4 stereo inputs and 4 stereo sources
120V DC Audio Rail - 5G SUPRA op-amps
2 stereo recording outputs
+32.5dB max input level
3 stereo and 2 mono speaker outputs (sub, radio speaker)
Recording output THD & N (at 24dBu): › 112 dB
Sub can be assigned to individual speaker set
0.25dB stepped input & insert return trims
Expandable to multi-channel monitoring with MC16. DMC hands volume control of L/R and Sub to MC16 (no speaker repatching required!)
Auto Bypass with Interval control
Switchable +/-10dB Recording Gain control
Phonitor direct output
Loudness compensation for Inputs vs. Output
Stereo and mono metering outputs
Loudness compensation for Output vs. Sources
GPI switch function (Talkback, Red light etc.)
Loudness compensation for Pre vs. Post inserts

Specifications

Inputs

Max. Input Level: +32.5 dBu
Input Impedance: 20 kOhm (balanced)
CMRR (at 0 dBu): › 82 dBu

Outputs (Speaker Output)

Max. Output Level: +32.5 dBu
Output Impedance: ‹ 100 Ohm
Frequency Range: 10 Hz-200 kHz 10 Hz = -0.12 dB; 100 kHz = -0.3 dB; 200 kHz = -1.2 dB
Noise (unweighted, at 24dBu): -101.4 dBu
Noise (A-weighted, at 24dBu): -103.9 dBu
Noise (CCIR, at 24dBu): -94.9 dBu
THD & N (at 24dBu): › 108 dB

Outputs (Recording Output, Insert active)

Max. Output Level: +32.5 dBu
Output Impedance: ‹ 100 Ohm
Frequency Range: 10 Hz-200 kHz 10 Hz = -0.12 dB; 100 kHz = -0.6 dB; 200 kHz = -2.3 dB
Noise (unweighted, at 24dBu): -98.4 dBu
Noise (A-weighted, at 24dBu): -101.6 dBu
Noise (CCIR, at 24dBu): -92.2 dBu
THD & N (at 24dBu): › 112 dB

Power Consumption:

0.22 Amp, 230V/50Hz, 35 Watt, 53 VA
0.44 Amp, 115V/60Hz, 35 Watt, 53 VA

Fuses:

230V/50Hz: 1 Amp
115V/60Hz: 2 Amp

Dimensions & Weight

W x H x D: 482mm x 132mm x 340mm; 19" x 5.2" x 13.36"
Standard EIA 19" Housing/3HE)
Weight: 10.6kg / 23.369lb

Analog Inputs

Hardware format

Rack
